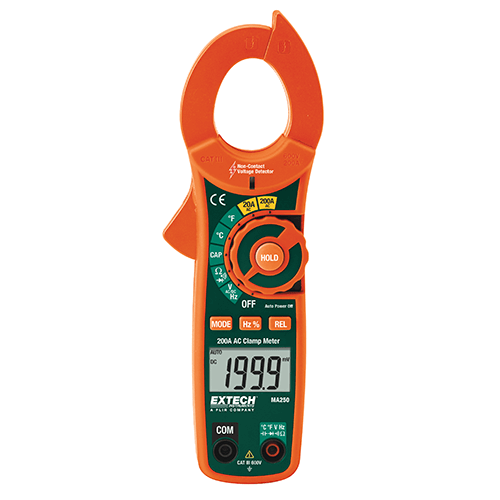

MA250 200A AC Clamp Meter + NCV
Brand: ExtechThe compact Extech MA250 200 amp AC/DC clamp meter offers maintenance technicians, electricians, and DIYers a test instrument that delivers a high level of features and value.
In addition to a host of core multimeter and current measurement capabilities, it also features a built-in non-contact voltage (NCV) detector.
The heart of the MA250 is a full-function digital multimeter.
Measurement functions cover most types of troubleshooting over and above noninvasive current probe measurements: voltage, resistance, capacitance, frequency, duty cycle, diode and continuity tests.
Even measure temperature with the supplied Type K bead wire temperature probe.
MA250 comes with test leads, general-purpose Type K bead wire temperature probe, two AAA batteries, carrying case, user manual, and one-year limited warranty.
Features- Built-in non-contact Voltage detector with LED alert to quickly check for the presence of live wires before testing.
- 1.2" (30 mm) jaw size for conductors up to 500MCM.
- 4,000 count LCD display.
- Multimeter functions include AC/DC Voltage, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode, and Continuity.
- Relative Mode for Capacitance Zero and Offset Adjustment.
- Data Hold and Auto Power Off.
- Complete with test leads, general-purpose Type K bead wire temperature probe, two AAA batteries, and carrying case.
Specifications
Brand
AC Current
- 20 A, 200 A
AC Voltage (Maximum Resolution)
- 600 V (0.1 mV)
Basic ACA Accuracy (% Reading)
- ± 2.5 %
Capacitance (Maximum Resolution)
- 100 µF (0.01 NF)
Data Hold
- Yes
DC Voltage (Maximum Resolution)
- 600 V (0.1 mV)
Dimensions, Weight
- 7.9 x 2.6 x 1.5" (200 x 66 x 37 mm) / 7.2 oz. (205 g)
Diode, Continuity
- Yes
Display Counts
- 4000 Count LCD
Duty Cycle
- 0.1 to 99.9 %
Frequency (Maximum Resolution)
- 10 kHz (1 Hz)
Jaw Size, Cable Size
- 1.2" (30 mm), 350MCM
Maximum Resolution
- 0.01 A (AC)
Minimum/Maximum
- Minimum/Max.imum
Resistance (Maximum Resolution)
- 40.00 MΩ (0.1 Ω)
Temperature
- -4° to 1400° F (-20° to 760° C)
