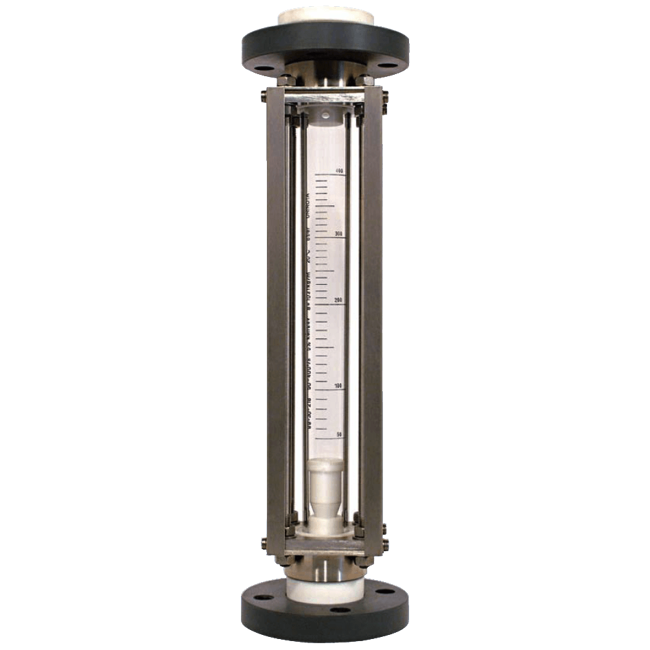

Kobold Variable Area Flowmeter, URL

URL Variable Area Flowmeter

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

The Kobold URL model flow meter/monitor works on the basis of the suspended float principle. It is used for measuring the flow rates in closed pipe line systems. The medium flows from below through a glass measuring cone that gets wider on top.

Thus, the float is raised and indicates the respective flow rate on the scale provided on the measuring cone.

To monitor flow rate limits, the URL meters can be optionally furnished with "open collector" proximity switches.

This plastic version is not only economical but also resistant against several chemicals. By its special design, this model is particularly suitable for applications where only very small operating pressures are available.

Another advantage is offered by the very large sight glass which optically allows direct flow observation.

View_Details

Specifications

Brand

Accuracy

  • Class 4

Applications

  • Cooling Circuits
  • Domestic Engineering
  • Extrusion Machines
  • Glass-Melting Tanks
  • Heating Equipment
  • Induction Furnace
  • Machine Tools
  • Paper Machines
  • Plant Engineering
  • Solar Systems
  • Water Treatment
  • Welding Machines

Calibration

  • 20° C (68° F)
  • psia: 14.69 (kPa: 101.3, bar: 1.013)

Connection Material

  • PTFE
  • PVC

Cover Material

  • 304 Stainless Steel

Enclosure / Body Material

  • 304 Stainless Steel

Flange Material

  • 304 Stainless Steel
  • PVC

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - PN 16

Flange Size - 1-1/4” (DN 32)

  • 1-1/4" (DN 32) - PN 16

Flange Size - 1” (DN 25)

  • 1" (DN 25) - PN 16

Flange Size - 1/2” (DN 15)

  • 1/2" (DN 15) - PN 16

Flow Rate

  • 0.01 to 100 Nm³/hour to Air
  • 1 to 2,500 L/hr to Water

Materials of Construction

  • Borosilicate Glass - Measuring Tube
  • Plastic
  • Polypropylene - Float Material
  • PTFE - Float Material
  • PVC - Float Material

Maximum System Pressure

  • psi: 87 (kPa: 600, bar: 6)

Mounting Position

  • Vertical

Pressure Type

  • Absolute

Ring Material

  • PTFE
  • PVC

Seat / Seal Material

  • EPDM
  • FPM
  • NBR
  • PTFE

Sight Glass Material

  • Plexiglas

Switch Type

  • Proximity

Temperature Range

  • Maximum

Documentation

Data Sheets
