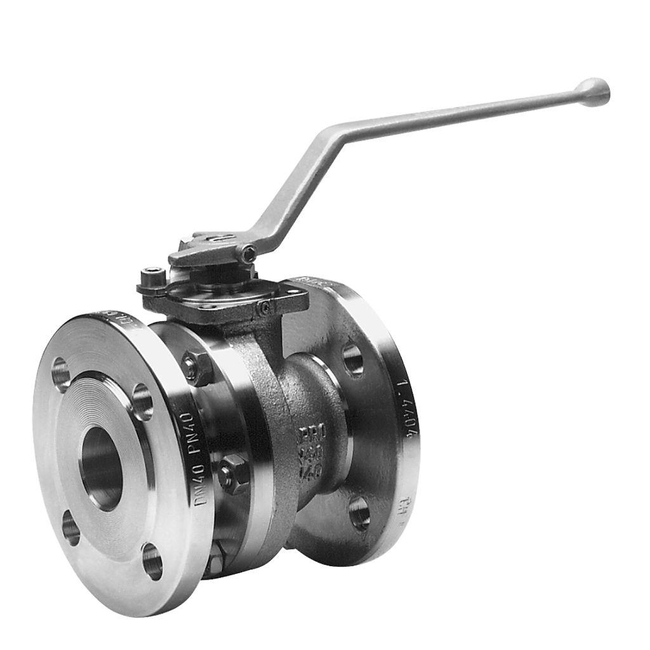

Model 328/628 Capro Type Ball Valves
Brand: KTMHigh quality requirements and technical standards of the chemical industry have been used as basic design parameters for these full bore ball valves.
Features- Full bore two piece ball valve.
- Internally mounted blow out proof stem.
- Anti static to ISO 7121.
- Different gland packing configurations.
- Actuator mounting flange acc. DIN/ISO 5211.
- Face-to-face dimensions to DIN/EN 558-1 Series 27.
- Fugitive emission free packing TA-Luft VDI 2440.
- Encapsulated body seal.
- Various options available:
- Double gland packing with monitoring port.
- Stem extensions.
- Spring mounted seat.
- Heating jacket also for installed valves.
- Fire safe.
Specifications
Brand
Approvals & Certifications
- Regional, PED, Fugitive Emission, CE
Body Design
- Side Entry, Short Pattern
End Connection
- Flanged
Material
- 316 Stainless Steel, Carbon Steel
Media
- Water Glycol, Water, Vacuum, Oxygen, NH₃ (Anhydrous Ammonia), NH₃, Natural Gas, Mineral Oil, LPG, Liquids, Liquid Propane, Steam, Liquid, Light Oil, Liquid Propane Gas, Fuel Oil, Hot Water, Air, Aggressive Liquids & Gases, CNG, Air, Inert Gas, Ammonia
Operating Temperature
- Less than 200° C
Pressure Class
- ASME , PN
Process Connection Type
- 300 RF, 150 RF, PN 25, PN 16, Flanged, Class 300 RF, Class 150 RF, PN 40
Seat / Seal Type
- Soft Seal, Ball
Shutoff Class
- API 598, Zero Leakage
Standards
- ASME B16.34, API 608
Valve Size
- NPS 1 / DN 25, NPS 1-1/2 / DN 40, NPS 2 / DN 50, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 3 / DN 80
Valve Size Standard
- DN, NPS
Valve Type
- Ball, Floating Ball Valve
- Crude Blending
- Crude & Product Transfer
- Cleaning & Processing
- Chemical Injection / Flow Assurance
- Clean Steam
- Chemical Dispersion
- Water Treatment
- Storage & Distribution
- Steam Headers
- Separation
- Reactor
