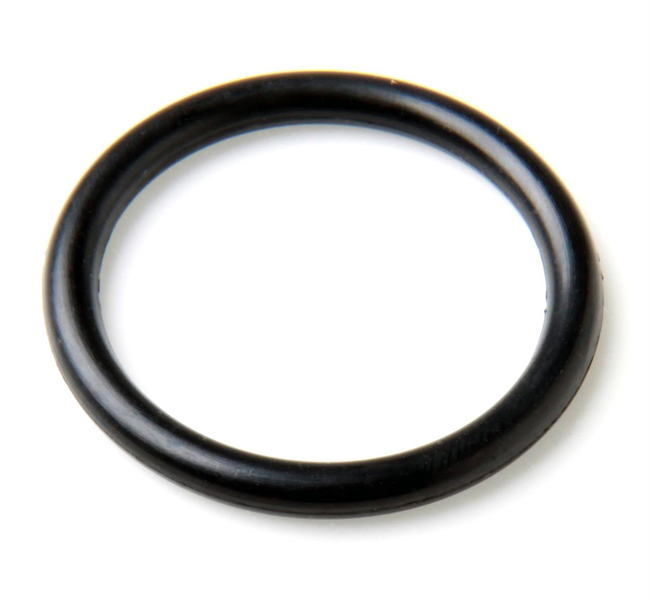

Fluorocarbon 65 Durometer O-Ring, General-Purpose (VA150-65)
Brand: Parker HannifinParker's Fluorocarbon 65 Durometer O-Ring, General Purpose (VA150-65) Fluorocarbon has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics and many organic solvents and chemicals.
Gas permeability is very low and similar to that of butyl rubber.
Features- Heat resistance — Up to 204°C (400°F)
- Cold flexibility — Down to -26°C (-15°F)
Specifications
Brand
Approvals & Certifications
- None
Color
- Black
Fluid Compatibility
- Broad Range
Inside Diameter (inch)
- 0.029” to 25.94”
Internally Lubed
- No
Markets
- General
Maximum Working Temperature (°F)
- 400° F
Minimum Working Temperature (°F)
- -15° F
Nominal Hardness
- 65
Nominal Hardness Range
- < 70
Polymer Family
- Fluorocarbon (FKM, FPM)
Region of Origin
- North America
Thermal Application (°F)
- High Temperature (260° to 400° F)
Trade Name
- 19356
Width (inch)
- 0.04” to 0.275”
Documentation
Data Sheets
- Compound Shrink Class pdf 371 KB
- FDA and USP CLass VI O Ring Materials ORD 5737 pdf 221 KB
- O Ring Coatings Advanced Coating Methods for All of Your Application Needs ORD 5757 pdf 1.5 MB
- O Ring Division Frequently Asked Questions pdf 118 KB
- Parker O Ring Handbook ORD 5700 pdf 5.9 MB
- Parker Tracking System and RFID Technology pdf 72 KB
- Shelf Life pdf 79 KB
- Technical Glossary pdf 132 KB
- VA150 Material Test Report pdf 12 KB
