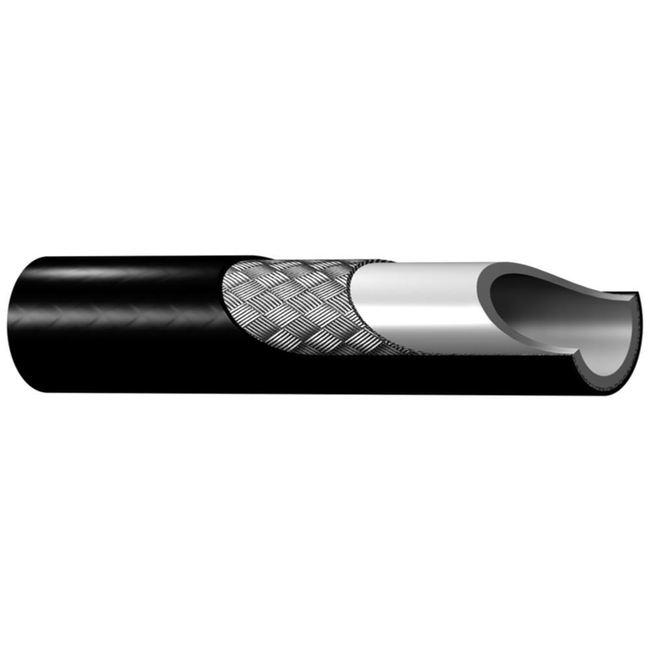

Liquified Propane Gas & Natural Gas Hose - 8LPG

Brand: Parker Hannifin

Parker 8LPG Hoses are designed to match high demands in hydraulics or media transfer applications.

They offer reliability, versatility and a high degree of customization and are ideal for production environments. For liquefied propane gas.

Specifications

Compatible Fittings

  • PX-LPG

Hose I.D. (DN)

  • 5, 6, 8, 10

Hose I.D. (inch)

  • 3/16”, 1/4”, 5/16”, 3/8

Hose I.D. (mm)

  • 4,8 - 9,5

Hose I.D. (Size)

  • -3, -4, -5, -6

Hose O.D. (inch)

  • 8 - 15,3

Hose O.D. (mm)

  • 8, 9,8, 12,2, 13,7, 9,5, 11,5, 13,8, 15,3

Industry Standards

  • ECE R67

Maximum Working Pressure (bar)

  • 30

Maximum Working Pressure (Mpa)

  • 3

Maximum Working Pressure (psi)

  • 435

Maximum Working Temperature (°C)

  • 100° C

Maximum Working Temperature (°F)

  • 212° F

Minimum Bend Radius (inch)

  • 2 - 4

Minimum Burst Pressure (MPa)

  • 15

Minimum Burst Pressure (psi)

  • 2175

Minimum Working Temperature (°C)

  • -25° C

Minimum Working Temperature (°F)

  • -13° F

Weight (kg/m)

  • 0,033 - 0,090

Weight (Lbs/Ft)

  • 0,022 - 0,06
