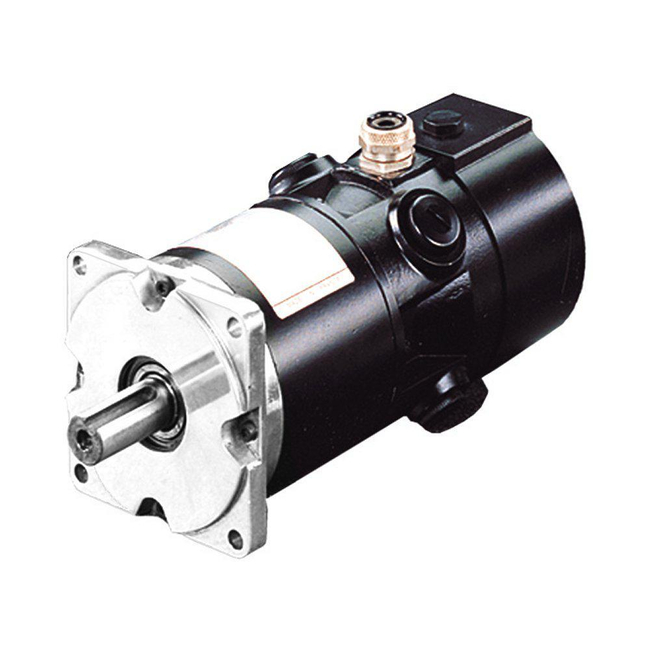

High Performance DC Servo Motor - RS Series

Brand: Parker Hannifin

Using high energy magnets, RS DC motors combined with RTS drives are particularly suitable for applications which require a very compact solution or a high dynamic level.
Features
  • High performance characteristics
  • Excellent low-speed functioning
  • High compactness
  • Very long service life
  • Rare earth magnets
  • Tacho, encoder resolver and brake in option

Specifications

Approvals & Certifications

  • CE Marked (Except RS6)

Continuous Torque (In/Lbs)

  • 0.44 to 115

Continuous Torque (Nm)

  • 0.05 to 13

Feedback Device

  • Tacho/Encoder/Resolver

Frame Size

  • 39 mm / 52 mm / 68 mm / 83 mm / 97 mm / 120 mm

Holding Brake

  • Optional

Input Supply Voltage

  • 20.7 to 105 Vdc

IP Protection Rating

  • IP40 (RS1-RS4) / IP54 (RS5-RS6)

Motor Pole Count

  • 4

Parker Drive Compatibility

  • RTS

Peak Torque (In/Lbs)

  • 1,24 to 371

Peak Torque (Nm)

  • 0.14 to 42

Rated Speed (rpm)

  • 2000 to 3000

Shaft Type

  • Smooth (RS1-RS4) / Keyway (RS5-RS6) / 2nd Shaft (Rear)
