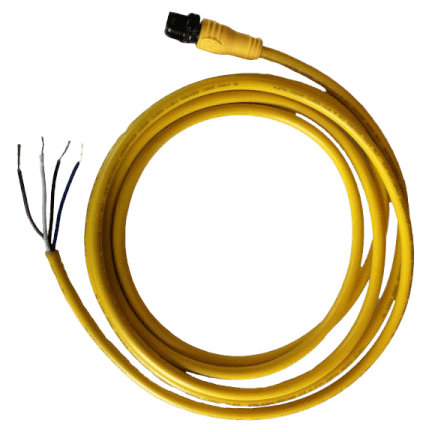

Straight Male 12mm (M12), 4 Pin 22AWG Cable with Yellow PVC Jacket, Other End Terminates in Flying Leads
Brand: Finecables Co, Ltd
Features
- UL Recognized, CE, IEC 61076-2-101
- Industry standard axial connection
- Single-ended male connection
- 2, 5, 10 and 15 meter lengths for most varieties
Specifications
Brand
Certifications
- UL Recognized
- CE
- IEC 61076-2-101
Protection
- IP67
Cable Type
- PVC (Jacket and Wire Insulation)
Operating Temperature
- -10° to +70° C
Rated Current
- 4A
Nominal Voltage
- 250 Vac
- 300 Vdc
No. of Poles
- 4
Wire Size
- 22 AWG (.34 mm)
Contact Resistance
- Less Than or Equal to 5 Milliohms
Insulation Resistance
- Greater Than 20 Megohms
Screw & Nut
- Brass W/ Nickel Plating
Contact Material
- Brass W/ Gold Plating
Overmold
- TPU (Thermoplastic Polyurethane)
