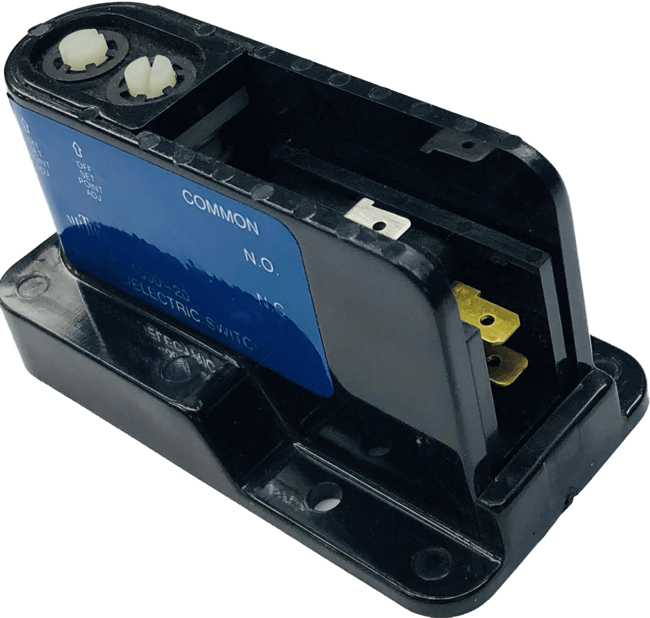

F-4000 and F-4000X Series Adjustable Deadband Switches

Brand: Airtrol Components Inc

The F-4000 Series pressure and vacuum switches are unique in that both the actuation and release points can be set independently of each other.

Available in pressure ranges to 60″ WC and vacuum to 15″ Hg.

Gold contacts and solid state hall effect switch options are also available.

Specifications

Contact Form

  • Single Pole
  • Double Throw

Terminations

  • .187 Quick-connect

Agency Compliances

  • UL/CSA Approved Microswitch

Operating Speed

  • 25 MSEC

Body

  • Polysulfone 1
  • Wetted Materials

Diaphragm

  • Polyurethane 1

Spring

  • Stainless Steel 2
  • Wetted on Vacuum Version Only

Others

  • Acetal
  • Nylon 1
  • Wetted Materials

Temperature Range

  • 4° to 66° C
  • 40° TO 150° F

Repeatability

  • ± 2 % Full Scale

Current Rating

  • 15 AMPS
