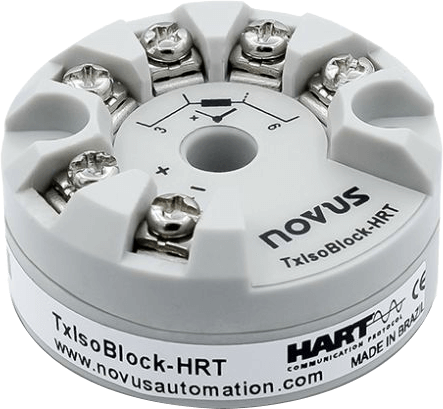

TxIsoBlock-HRT HART® Temperature Transmitter

Brand: Novus Automation
Add Product to My Catalog

Temperature transmitter TxIsoBlock-HRT combines the proven quality of HART® certification with the robustness of NOVUS devices. The transmitter is compatible with HART® certified devices and it has electrical isolation between input and output, supporting voltage surges up to 1.5 kVrms.

Its great differential is the total configuration through the two 4-20 mA current loop wires, which means more features for device configuration and monitoring.

By using a worldwide known protocol with more than 40 million field instruments supporting HART® technology, NOVUS’s temperature transmitter TxIsoBlock-HRT enables the use of standard HART® configuration and supervision software that provides flexibility to users.
Features
  • Input Type: J, K, T, N, R, S, B, E, Pt100, Pt1000, NTC and 0-50 mV
  • Configuration Software: TxConfig II
  • Approvals / Regulations: CE, NAMUR NE43, RoHS, Reach, HART®
  • Accuracy Typical
    • Pt1000 / mV: 0.07 % span
    • Pt100: 0.08 % span
    • T/C: 0.07 % span ±1 °C (1.8 °F)
    • NTC: 0.2 °C (0.36 °F)
  • Maximum
    • Pt1000 / mV: 0.15 % span
    • Pt100: 0.15 % span
    • T/C: 0.15 % span ±1 °C (1.8 °F)
    • NTC: 0.45 °C (0.81 °F)”
  • Output Type: 4-20 mA
    • Output Resolution: 0.25 µA
    • Thermal Drift: < 0.05 % / 25 °C (77 °F)
    • Isolation Input-Output: 1.5 kVrms
    • Electric Protection: Reverse Polarity
    • HART® Version: HART V7, compatible with HART V5
    • Configuration Interface: Through TxConfig-HRT adapter or HART® certified HandHeld
  • Electromagnetic Compatibility
    • CISPR 11
    • EN 61000-4-2
    • EN 61000-4-3
    • EN 61000-4-4
    • EN 61000-4-5
    • EN 61000-4-6
    • EN 61000-4-8
