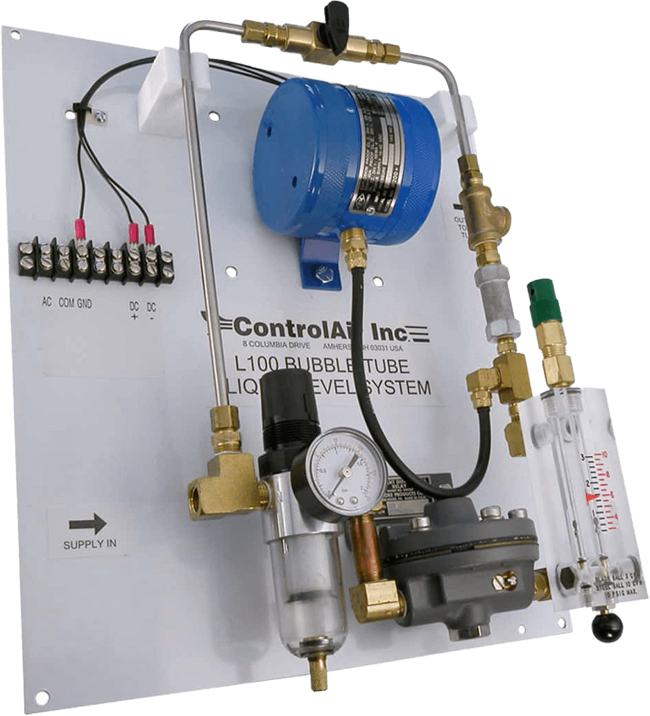

Type L100 Bubble-tube Liquid Level System
Brand: ControlAirThe L100 Bubble-Tube Level System is a fully self contained instrument - liquid level system, requiring only connections to air or gas supply, dip tube and electrical power source to provide precise level measurement.
Features- High accuracy and Stability
- Blow-Down Capability
- Unaffected by Foam or Vapors
- Excellent for High-Temperature, Corrosive, Remote Hazardous Area or Waste Water Level Measurement
- NEMA 4X Enclosures Available
Specifications
Brand
Assembly
- Remote Sensing
- Automatic Blow Down and Built-in Timer
- Automatic Blow-down and Remote-sensing
- Basic Bubble-tube System
Enclosure
- Small NEMA 4X Enclosure
- Large NEMA 4X Enclosure
- Panel Only, No Enclosure
Digital Readout
- Inches Water - Digital Readout, Scaled for Range
- 4-20 mA - Digital Readout, Scaled for Range
- 0-100 % - Digital Readout, Scaled for Range
- No Digital Readout
Transducer
- ControlAir P/I Transducer
- No P/I Transducer
Ranges
- 0-1.8 to 0-6.0 psi / 0-0.12 to 0-0.41 bar
- 0-6 to 0-18 psi / 0-0.41 to 0-1.24 bar
- 0-18 to 0-30 psi / 0-1.24 to 0-2. bar
Liquid Inches
- 0 to 830”
- Waste and Water Treatment Plants for Municipalities
- Trash to Energy Plants
