Kobold Manual Stainless Steel Ball Valve, KUG-ZG

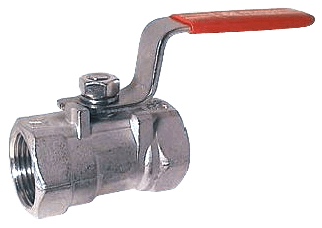

KUG-ZG Manual Stainless Steel Ball Valve

Brand: KOBOLD Instruments, Inc
Add Product to My Catalog

Design
One-piece threaded joint construction with reduced cylindric bore. Stamping as per AD approval certificate A 4.

Technical Details
  • Connections: Rp 1/4" Female to Rp 1" Female (as per DIN 2999)
  • Temperature Range: -30° to 180° C ( -22° to 356° F)
  • Nominal Pressure: PN 64 (928.2 psi, 6,400 kPa, 64 bar) to 80°C (176° F)
  • Operation: 90° Rotation of Handle

1 - 5 of 5 Part Numbers
KUG-ZGR 08
KUG-ZGR 08
  • Process Connection - Rp 1/4" Female
KUG-ZGR 10
KUG-ZGR 10
  • Process Connection - Rp 3/8" Female
KUG-ZGR 15
KUG-ZGR 15
  • Process Connection - Rp 1/2" Female
KUG-ZGR 20
KUG-ZGR 20
  • Process Connection - Rp 3/4" Female
KUG-ZGR 25
KUG-ZGR 25
  • Process Connection - Rp 1" Female
1 - 5 of 5 Part Numbers

View_Details

Specifications

Brand

Approvals & Certifications

  • AD Approval Certificate A 4

Ball Gasket Material

  • PTFE Glass-Fiber Reinforced

Ball Material

  • 316L Stainless Steel

BSP Connection

  • 1” BSPP Female
  • 1/2” BSPP Female
  • 1/4” BSPP Female
  • 3/4” BSPP Female
  • 3/8” BSPP Female

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel

Handle Assembly Material

  • 304 Stainless Steel, Plastic Sheathed

Maximum System Pressure

  • PN 64 (928.2 psi, 6,400 kPa, 64 bar) to 80° C (176° F)

Operation

  • 90° Rotation of the Handle

Port

  • Reduced (Standard, Regular)

Temperature Range

  • -30° to 180° C (-22° to 356° F)

Valve Type

  • Manual

Documentation

Data Sheets
