Add the SonoDur-R (Rack) 19” Desktop Device to your store or catalog
Book Your Demo and See How
or create your store

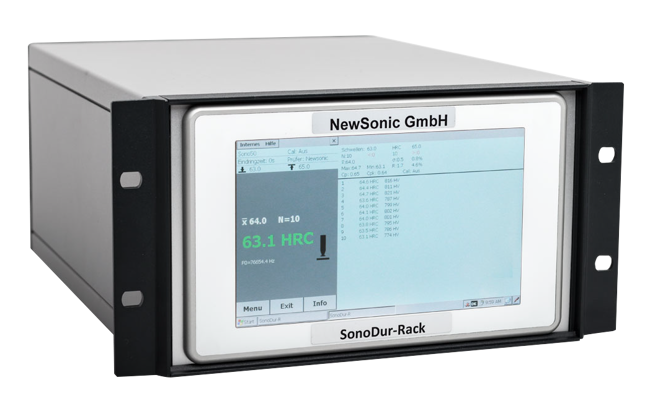

SonoDur-R (Rack) 19” Desktop Device.png

SonoDur-R (Rack) 19” Desktop Device

Brand: Institut Dr. Foerster GmbH + Co. KG
Add Product to My Catalog

SonoDur-R is a 19” desktop device for fully automated, 100% checks of mass-produced parts. The measurement system enables rapid process monitoring (at one-second intervals) of mix-up testing procedures.

Its main areas of application are serial parts following heat treatment, surface processing or measuring coating hardness on gravure cylinders with highly-selective low-load motorised probes.

Thanks to its USB- and fully-isolated, digital I/O interface, the SonoDur-R ‘Rack’ is currently the world’s only automated UCI hardness measurement system which is fully system-compatible. Setpoints allow factors such as good/bad sorting gates to be controlled directly.
Features
  • Fully isolated, digital I/O interface for the direct controlling of actuators; potential-free signal contacts for full remote control via SP
  • Speed: Approx. 1 measurement per second
  • Measured value counter with statistical functions
  • Fast amortisation through the durable SonoDur 2 manual measurement probes SONO-10H (HV1), SONO-50H (HV5) and SONO-100H (HV10)
  • RS232 interface for measured value transmission
  • Operates on 24 VDC voltage or an external power supply
  • All SonoDur manual and motorised probes can be used
  • Large measured data memory 2GB (approx. 90,000 measurement series, each with 1,000 measurements)
  • Measured value changes in colour depending on the applied set point

Specifications

Brand

Measuring Principle

  • UCI Method, Corresponds to DIN 50159-1,-2, ASTM A1038

Test Indenter

  • Vickers Diamond 136°

Hardness Scales and Range

  • Vickers: HV 10 to 1999 (9999)
  • Brinell: HB 76 to 618
  • Rockwell: HRB 41 to 105; HRC 20.3 to 68; HRE 70 to 108.5; HRF 82.6 to 115.1; HRA 60.7 to 85.6; HRD 40.3 to 76.9; HR45N 19.9 to 75.4
  • Knoop (ASTM E140 only: HK 87 to 920
  • Shore (ASTM E140 only): HS 34.2 to 97.3
  • Tensile Strength: MPa 255 to 2,180

Measurement Uncertainty

  • < 4% (HV5, HV 10)

Relative Repeatability

  • < 5% (HV5, HV 10)

Operating Temperature

  • Probe: 0° to 50° C

Storage Temperature

  • -20° to 70° C

Humidity

  • Max. 90%, Non-condensing

Power Input

  • 12–24 VDC, 6 W

Display

  • TFT-Display 800 x 480 Pixel with LED-Backlight Touch-Screen
  • Size (Inch/mm) 7.0/ 178, Luminance 400 cd/m2

Dust/Water-splash Proof

  • IP20

  • Hardness Testing on Serial Parts Following Heat Treatment
  • Hardness Testing on Parts Following Surface Processing
  • Measuring Coating Hardness on Gravure Cylinder

Documentation

Brochure
