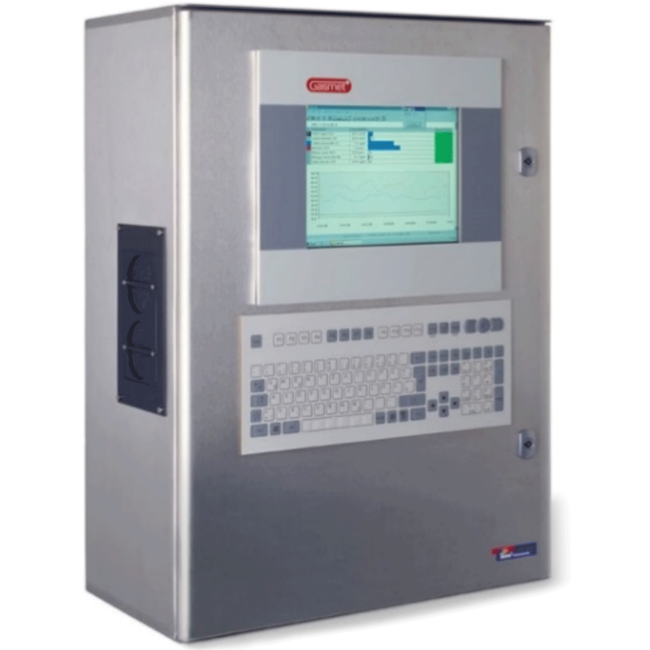

FCX-Series FTIR Gas Analyzer
Brand: Gasmet TechnologiesThe Gasmet FCX-Series features a comprehensive range of high performance FTIR process gas analyzers. The wall mounted Gasmet FCX process gas analyzers offer reliable results even when analyzing complex gas mixtures.
The Gasmet FCX process gas analyzers incorporate Fourier Transform Infrared spectrometer, gas cell, and signal processing electronics, a built-in industrial computer and a TFT display into a compact enclosure.
The analysis results of Gasmet FCX process gas analyzer are transmitted via 4-20 mA Analog output signals or digital outputs (Modbus).
The enclosure has IP 65 protection with Vortex cooling and IP 31 protection with fan cooling. Different versions of Gasmet FCX are available based on the application. The sample cell can be equipped with heating and temperature control up to 180° C. Sample cell absorption path length is selected according to the application.
Specifications
Brand
Approvals & Certifications
- CE Label: According to EMI Guideline 89/336/EC
Consumption
- 500 W
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP 31
- IP65
Operating Temperature
- Long-term: 5° to 30° C (41° to 86° F)
Power Supply
- 100-115 or 230 Vac 50/60 Hz
Process Connection - Other
- 6 mm Swagelok
Storage Temperature
- 10° to 35° C (50° to 95° F)
