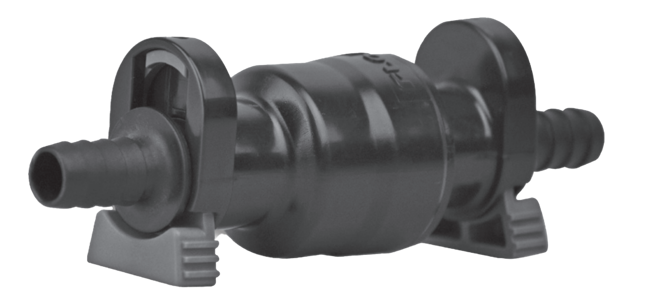

01752 Series In-Line Water Pressure Regulator
Brand: FlojetFLOJET’s 01752 series Inline Water Pressure Regulator reduces inlet water pressure to safe levels for pumps and appliances.
Models are available in pre-set, non-adjustable maximum (nominal) outlet pressures.
Actual outlet pressure varies with inlet flow rate and pressure, reference performance section on next page for details.
Features- Minimizes inlet water fluctuation
- Limits inlet water pressure to levels safe for pumps and appliances
- Can be mounted in any position
- Available in 15, 30, 50, 65 & 80 psi max. models
- Manufactured with food grade materials
- Handles water temperatures up to 120º F
Specifications
Brand
Maximum Liquid Inlet Pressure
- 10 bar
- 150 psi
Port(s)
- 10 / 13 mm, 3/8” or 1/2” Hose Barb
Temperature Range
- 1° to 48° C
- 33° to 120° F
Wetted Parts
- EPDM, Polyoxymethylene, Polypropylene
