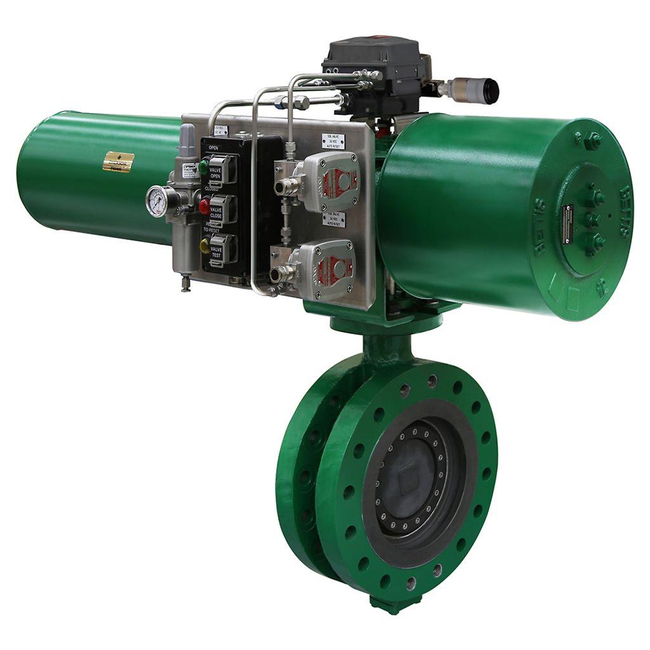

Digital Isolation Triple Offset Valve Solution
Brand: FisherThe Fisher Digital Isolation triple offset valve (TOV) solution was developed to serve the needs of customers' critical safety instrumented system (SIS) applications.
The 30,000 valve is assembled with field-proven Fisher G or CB Series actuation, Fisher FIELDVUE™ DVC6200 SIS digital valve controller, and Emerson accessories.
Features- Solutions are engineered, built, and tested to meet specifications and operate as a complete valve assembly.
- Complete factory documentation is maintained, including serial card, assembly birth certificate, and assembly hookups.
- SIL verification and certification services.
- Single point of contact for quotes, orders, and support.
- Intelligent, digital valve assembly.
Specifications
Brand
Actuation
- Scotch Yoke, Spring-Return, Double-Acting
Communication Protocol
- HART, Fieldbus
Design & Manufacturing Standards
- API 609, EN 593, ASME B 16.34, EN 12516
Fire Safety Test Standards
- API 607
Materials
- Carbon Steel, Stainless Steel, Low Temperature Carbon Steel, High Temperature Alloy Steel, Austenitic Stainless Steel, Duplex, Super Duplex
NACE
- MR-0103 / ISO 17945 & MR-0175 / ISO 15156 Compliant* (*based on Material)
Power Source
- Pneumatic
Pressure Rating
- ASME Class 150 -1500, EN PN 10 -160
Safety Integrity Level
- SIL 3 Capable
Shutoff Class
- ISO 5208, EN 12266 - 1, API 598
Valve Size
- DN 80-2800 (NPS 3 - 112)
Valve Type
- Triple Offset Valve
