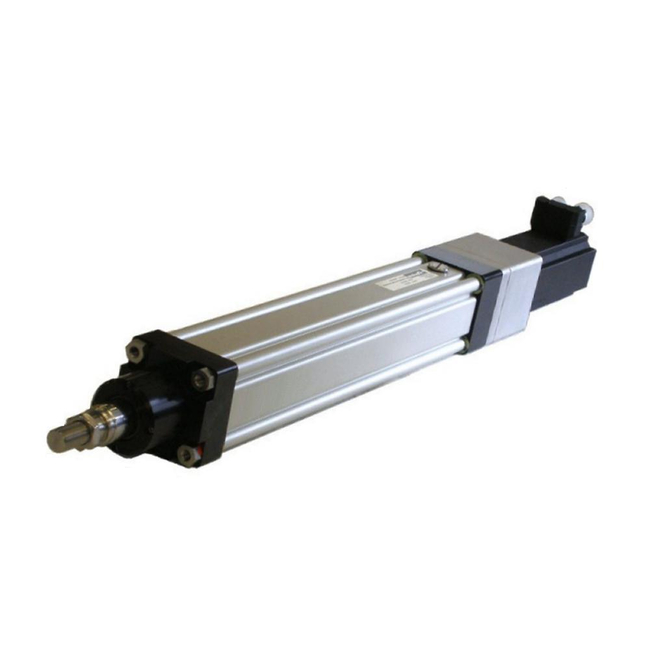

ET100 Screw Drive Electric Cylinder/Actuator
Brand: Parker HannifinAvailable in ISO100 frame sizes, with thrust forces to 5300lbs, the ET100 electric cylinders can be mounted in existing fluidpower cylinder applications, adding greatly improved programmability and control.
The ET100 'ElectroThrust' Series of electric cylinder linear actuators combine an unparalleled design with a variety of options that make it easy to integrate into any automation application.
Produced to hard metric ISO standards, the ET-series electric cylinders can be mounted into existing fluidpower cylinder applications, adding infinite programmability and control to the durability and long life expected of hydraulic and pneumatic cylinders.
Features- Cylinder Size : 100 (flange according to ISO 15552-12)
- Thrust forces : up to 5300 lbs (23500 N)
- Stroke lengths : up to 59" (1500 mm)
- Speeds : up to 50 inch/s (1.2 m/s)
- Accelerations : up to 386 inch/s² (9.8 m/s²)
Specifications
Brand
Additional Protection Option
- None
Corrosion Resistant Option
- Yes (Stainless Steel)
Drive Type
- Screw
IP Protection Rating
- IP54 IP65 (Optional)
Maximum Acceleration (Inch/S2)
- 386
Maximum Acceleration (m/S2)
- 9.8
Maximum Speed (inch/sec)
- 50
Maximum Speed (m/sec)
- 1.2
Maximum Stroke (inch)
- 59
Maximum Stroke (mm)
- 1500
Maximum Thrust (Lbs)
- 5300
Maximum Thrust (N)
- 23500
Operating Temperature (°C)
- 0° to +60° C
Operating Temperature (°F)
- +32° to +140° F
Position Repeatability (± Inch)
- 0.001 (Motor Inline) / 0.006 (Motor Parallel)
Position Repeatability (± mm)
- 0.03 (Motor Inline) / 0.15 (Motor Parallel)
Profile Width (mm)
- 114
Rod End Dimension
- ISO 100
Series
- ET
