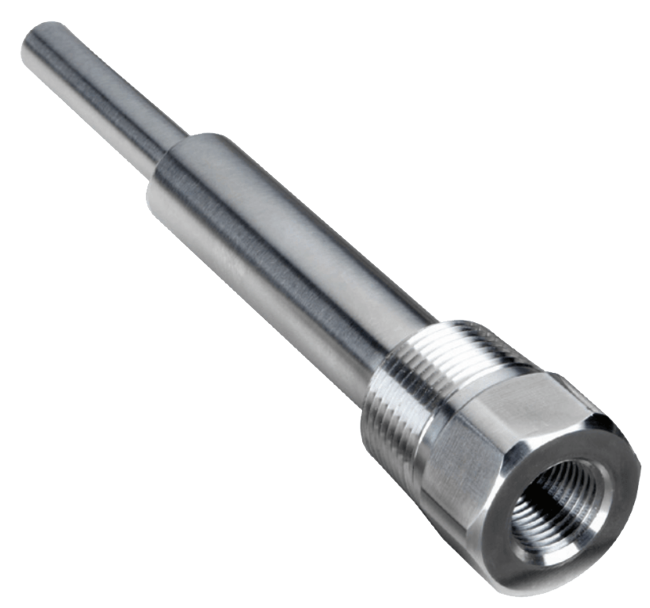

Style H & S Bar Stock Thermowell
Brand: United Electric Controls Ltd
- Process Connection:
- 1/2" NPT
- 3/4" NPT
- 1" NPT
- 1-1/2" NPT
- Style:
- Stepped Stem
- Tapered Stem
- Bore:
- 0.260" Bore
- 0.385" Bore
Specifications
Applications
- Dairy Industry
- Food & Beverage
- Military
- Nuclear
- Oil & Gas Applications
- Petrochemical
- Pharmaceutical
Approvals & Certifications
- Material Test Report
Bore Size
- 0.260” (6.6 mm)
- 0.385” (9.78 mm)
Cap Material
- Brass
- Stainless Steel
Diameter
- Root Diameter (Q): 0.63” to 0.88” (16 to 22.35 mm) - Style S260 & S385
- Root Diameter (Q): 0.63” to 1.63” (16 to 41.4 mm) - Style H260 & H385
Insertion 'U' Length
- 2.5” to 22.5” (63.5 to 571.5 mm)
Length
- Thermowell Length: 4” to 24” (101.6 to 609.6 mm)
Materials of Construction
- Chain Assembly: Stainless Steel
- Thermowell & Chain Assembly: Brass
- Thermowell: 304 Stainless Steel
- Thermowell: 310 Stainless Steel
- Thermowell: 316 Stainless Steel
- Thermowell: 316L Stainless Steel
- Thermowell: 321 Stainless Steel
- Thermowell: Alloy 20
- Thermowell: Aluminum
- Thermowell: Carbon Steel
- Thermowell: F11, F22 & F91 Forged Carbon Steel
- Thermowell: Hastelloy C
- Thermowell: Inconel 600
- Thermowell: Monel 400
- Thermowell: Titanium
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 1-1/2” NPT Female
- 3/4” NPT Female
Thermowell
- Stepped Stem
- Straight Stem
- Tapered Stem
