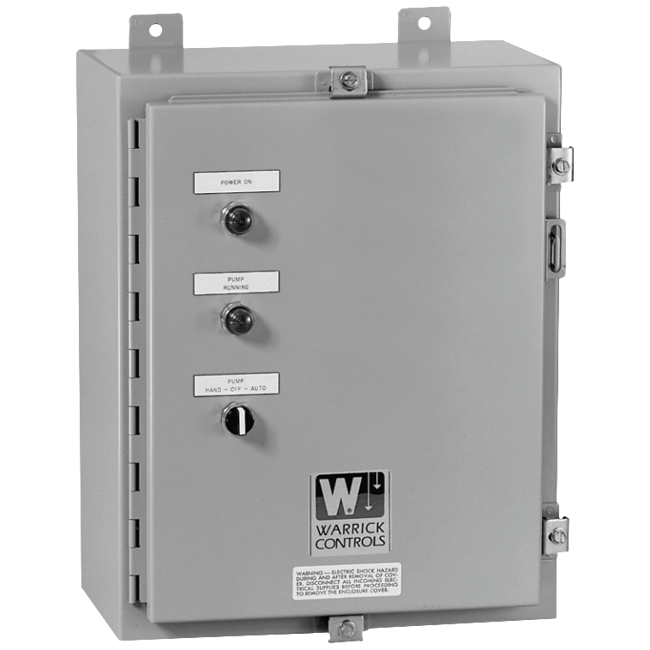

Warrick CP Series Control Panel
Brand: Gems Sensors, IncWhen it comes to control panels, Gems Sensors can satisfy most requirements with our new family of CP Series Panels. These standard models were specifically designed around our most popular panel types.
These industrial control panels interface with level and flow switches, Warrick conductance probes and a variety of sensors and are factory set for pump up/pump down.
Gems can provide the panel and sensors you need for intrinsically safe and non-intrinsically safe environments.
With each control panel, Gems provides electrical and mechanical drawings along with installation and operations manuals.
Features- NEMA 1 Enclosure - general-purpose
- NEMA 4 Enclosure - water resistant
- NEMA 4X Enclosure - corrosion and water resistant
- Optional Equipment - visual alarms, high & low audible/silent alarms, hand-off auto switches
Specifications
Brand
Applications
- Pump Alternation
- Simplex & Duplex Pump Up/Down
- Valve Fill & Drain
Approvals & Certifications
- UL (C,US): 508A File E100709, 698A File E120178 (Series 67 Control Only)
Electrical Rating
- 10 A at 120 Vac Resistive
Enclosure, Body Material
- Fiberglass
Environmental Protection
- IP10
- IP66
- NEMA 1
- NEMA 4
- NEMA 4X
Sensitivity
- Control Sensitivity: 26 to 50 kiloohms (Direct & Inverse)
Supply Voltage
- Primary Voltage: 120 Vac (10 % / -15 %), 50/60 Hz
Switch Type
- SPST
Temperature Range
- -40° to 65° C (-40° to 149° F)
- Simplex Pump Up/Down
- Duplex Pump Up/Down
- Pump Alternation
- Valve Fill & Drain
