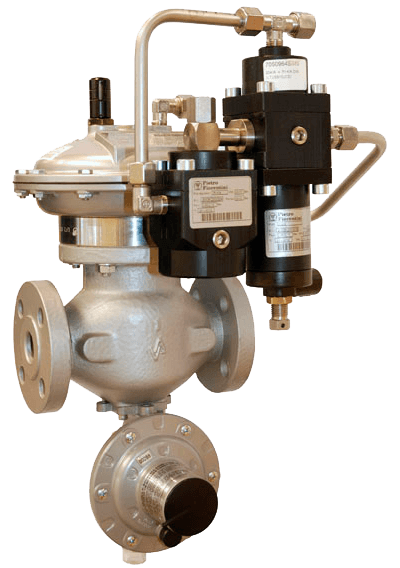

Dixi Pressure Regulator

Brand: Pietro Fiorentini S.p.A.
Add Product to My Catalog

Dixi is pilot-controlled pressure regulator for medium and low pressure. Dixi is a "fail close" regulator i.e. it will close if:
  • The main diaphragm fails
  • The  pilot diaphragm/s fail
  • There is no feed  to the pilot loop
These regulators are suitable for use with previously-filtered, non-corrosive gases.
Features
  • Design pressure 20 bar for all the components
  • Accuracy (AG): ap to 5 for pressure increase, up to 15 for pressure decreasing
  • Internal by-pass
  • Intervention for over pressure and/or under pressure
  • Manual push-button control
  • Possibility of pneumatic or electromagnetic remote control
  • Compact overall dimensions
  • Easy maintenance
  • Possibility of application of devices for remote signal (contact or inductive microswitches)

Specifications

Brand

Accuracy Class

  • Up to 2.5

Available Size DN

  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"

Closing Pressure Class SG

  • Up to 5

Design Pressure

  • Up to 16 bar

Design Temperature

  • -10° to 60° C

Flanging

  • Class 150 RF According to ANSI B 16.5 and PN 16 According to ISO 7005

Maximum Working Differential Pressure

  • 16 bar

Minimum Working Differential Pressure

  • 100 mbar

Outlet Pressure Range of Wd

  • 6 to 6,000 mbar

Range of Inlet Pressure Bpu

  • 0.5 to 16 bar

Documentation

Product Manuals

Catalogs

Design Schemes
