Rotary Systems - LTA Series
Brand: Franke GmbHCharacteristics

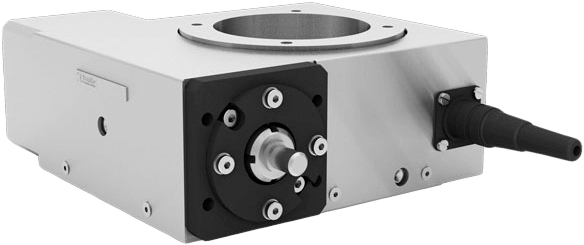

Franke rotary tables of type LTA are lightweight, compact, ready-to-use positioning units. They are highly resilient and deliver outstanding radial and axial run accuracy. Franke rotary tables type LTA are versatile in use and are well-suited to light processing applications and also for dynamic handling and assembly applications.
FeaturesProduct type
- Ready to install, perfectly suited for processing and handling applications
Characteristics
- Rotary table for highly precise handling applications
- Complete with motor and CNC-control unit (optional)
Diameter range
- 100 and 200 mm
Specifications
Brand
Material
- Baseplate: Aluminium
- Worm Shaft: CK45N Hardened and Ground
- Worm Wheel: Wear-Resistant Bronze Alloy
- Rolling Elements: 100Cr6
- Ball Race Rings: 54SiCr6
- Housing: V2A
Accuracies - LTA100
- Radial and Axial Runout Accuracies: 30 μm
- Repeatability in Arc Seconds: 20 sec
- Positioning Accuracy in Arc Seconds: 160 sec
Accuracies - LTA200
- Radial and Axial Runout Accuracies: 30 μm
- Repeatability in Arc Seconds: 14 sec
- Positioning Accuracy in Arc Seconds: 120 sec
Reduction Ratio
- 18:1 (LTA100)
- 36:1 (LTA200)
Temperature in Use
- -10° to +80° C
Rotational Speed
- Maximum 100 Min -1
Mounting Position
- Any, But We Recommend Positions in Which The Drive Module Occupies The Lowest Point
Lubrication
- With Bearing Grease Via Grease Nipples
