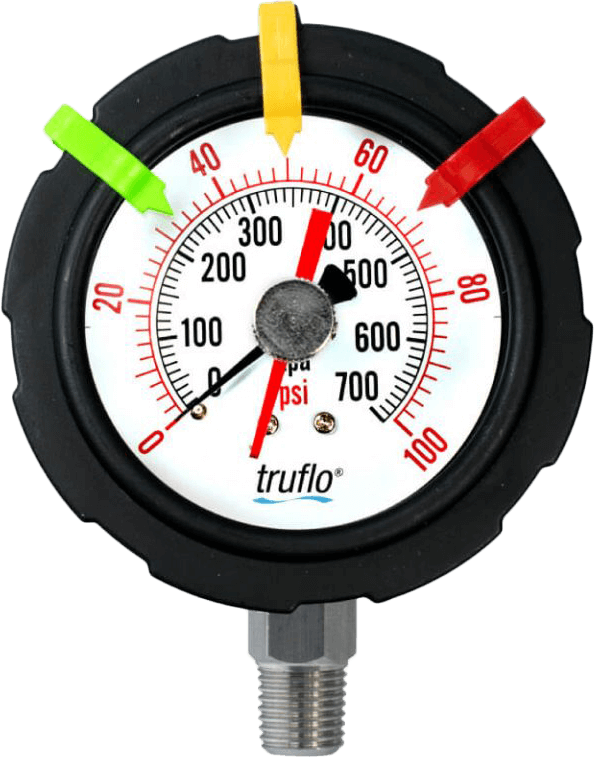

OBS-TT Pressure Gauge
Brand: Truflo®The OBS-TT Series Plastic ‘Tell-Tale’ Pressure Gauge is the industry’s most accurate pressure gauge on the market featuring a red ‘Tell-Tale’ pointer.
With a Thermoplastic Polypropylene enclosure, OBS-TT Series pressure gauges were engineered to last in the most corrosive environments.
A ¼” NPT 316SS connection comes standard on all OBS-TT Plastic Pressure Gauges.
This connection allows for them to be a perfect mate with our GI Series Pressure Gauge Guards when dealing with extremely corrosive chemicals.
Gauge guards are utilized to protect the pressure gauge from any corrosive media in the process system via an isolator.
OBS-TT Chemical Pressure Gauges come factory pre-filled, which is one of the main reasons we were able to achieve that industry leading accuracy of 0.75%.
Features- Range Tabs – Red | Yellow | Green
- Pressure Spike | Surge Notification
- ±0.75% Accuracy
- Large 2 ½” Display
- Dual Scale
Specifications
Brand
Mounting
- Direct Mount
- Bottom Connection
Process Connection
- 1/4” MNPT
Measuring Principle
- Bourdon Tube
- 316 Stainless Steel
Pressure Ranges
- 0 to 160 psi
Lens
- High Impact Polycarbonate
Accuracy
- ± 0.75 %
Operating Temperature
- 190° F
Dial Diameter
- 2-1/2”
Standards and Approvals
- CE
- FCC
- RoHS
- Chemicals, Acids, Bases
- Process Pressure
- Strainer Clean-Out Notification
- Filter Bag Replacement Notification
- Pressure Leak Detection
