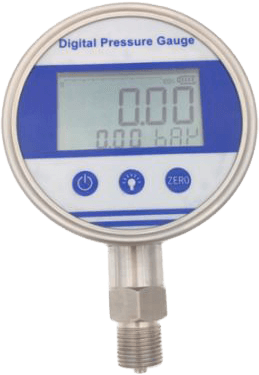

LCD Indicator Pressure Gauge
Brand: Xi'an UTOP Measurement Instrument Co, LtdUIY8 LCD Indicator Pressure Gauge is made with entire electronic structure, and uses battery as power supply. This gauge is very easy for field installation.
UIY8 Digital Pressure Gauge adopts high accuracy piezoresistive pressure sensor, which is located in the front end of UIY8.
The output signal of the pressure sensor is processed and amplified by high accuracy and low temperature coefficient amplifier, and then transferred to A/D switch to transform digital signal which can be processed by microprocessor.
After processing operation, the LCD indicator pressure gauge will demonstrates the actual value of the pressure by LCD indicator.
The use of UIY8 LCD Indicator Pressure Gauge is flexible, and its operation is very simple, and the adjustment of this gauge is easy, safe and reliable.
Features- Double screen, clear and easy to read
- The screen display 5 digit real-time pressure
- The second screen can display the maximum, minimum, peak value, ambient temperature
- Graphical pressure percentage and battery capacity display
- Exceed pressure alert – to avoid destroying caused by over load pressure
- White backlight is used for checking at night
- 10 kinds of selectable engineering units: MPa, kPa, Pa, bar, psi, mmH₂O, mH₂O, tor, atm, kgf and NO (NO Meaning is no unit selected)
- Acquisition rate 30 sec per time to 100 times per sec optional, widely applied
- Auto power-off will prolong battery life
Specifications
Pressure Medium
- Gas or Liquid Compatible to Stainless Steel
Pressure Gauges
- -1...0 ~ 0.1...1000 bar
Pressure Type
- Gauge
- Absolute
- Sealed Gauge
- Differential
Overload Pressure
- 150 % Full Scale
Accuracy
- 0.1 % FS, 0.25 % FS, 0.5 % FS
LCD Display
- 5-digit
Display Range
- -19999 ~ 99999
Long-Term Stability
- < 0.1 % Full Scale/year
Battery Power Supply
- 3.6 V Battery
Compensated Temperature Range
- 10° ~ +70° C
Operating Temperature Range
- -30° to +100° C
Selectable Ranges
- MPa, kPa, Pa, bar, psi, mmH₂O, mH₂O, tor, atm, kgf and NO
Sampling Speed
- 4 times/sec, or other options
Insulation Resistance
- 100 MΩ @ 50 Vdc
Process Connection
- G1/2” or others
Housing Material
- 304 Stainless Steel
- UIY8 LCD Indicator Pressure gauge is widely used in such Industries as Water and Electricity, Running Water, Petroleum, Chemical, and Machinery, for the Measurement and Demonstration of Fluid Medium's Pressure
