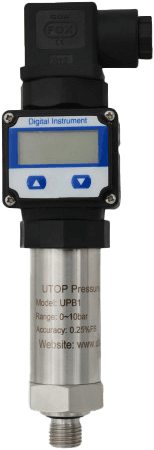

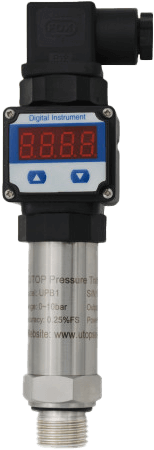

4-Digit Pressure Transmitter
Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Based on piezo-resistive silicon technology, UPB1 4-digit pressure transmitter uses isolated stainless steel diaphragm pressure sensor as sensing element.
By adopting high performance IC, its amplifier circuit is built in stainless steel housing, to transform sensor mV signal into standard output signal.
This 4-digit transmitter features integrated construction, high measuring accuracy, good long term stability.
Features- Against thunder stroke, against radio-frequency interference
- Full stainless steel construction
- Reversed-polarity, transient current & voltage protection
- Anti-corrosion, anti-attrition, anti-impact
Specifications
Pressure Ranges
- -1...0 ~ 0.1...1000 bar
Overload Pressure
- 150 % Full Scale
Output Signal
- 4 ~ 20 mA, 0 ~ 5 V, 0 ~ 10 V, 1 ~ 5 V, 0.5 ~ 4.5 V
Accuracy
- 0.1 % FS, 0.25 % FS (Standard), 0.5 % FS
Load Resistance
- RL = (U-12 V)/0.02 A (4~20 mA Current Output) U-Loop Voltage (V)
Supply Voltage
- 12 ~ 36 Vdc
Display
- 4-Digit LED or LCD Display
Process Connection
- G1/4”, 1/4” NPT or others
Electrical Connection
- DIN 42540 or others
Material of Wetted Part and Housing
- 304 Stainless Steel
- UPB1 4-Digit Pressure Transmitter is widely used for:
- Pressure Measurement and Control of Petroleum
- Chemical Industry
- Metallurgy
- Power Station and Hydrology etc
