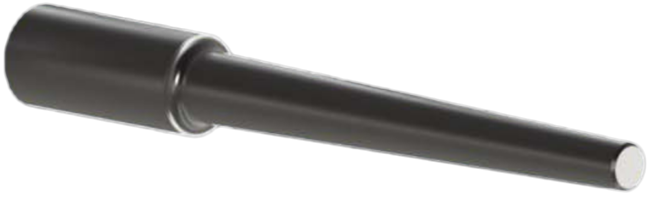

Welded Protection Tube

Brand: Setex Products

SETEX specializes in the design and manufacture of thermowells, sample probes and protection tubes.

Specifications

Approvals & Certifications

  • Certificate of Compliance (COC)
  • Certificate of Origin (COO)
  • Dye Penetration Testing
  • Internal/External Hydrostatic Testing
  • Material Test Report (MTR)
  • PMI - Positive Material Identification, Testing

Cap Material

  • Cap & Chain: Brass
  • Cap & Chain: Stainless Steel

Enclosure Finish

  • Electro-Polishing

Insertion 'U' Length

  • 12 to 98” (304.8 to 2,489 mm)

Length

  • Head Length: 2 to 9.5” (50.8 to 241.3 mm)

Materials of Construction

  • 304 Stainless Steel
  • 310 Stainless Steel
  • 316 Stainless Steel
  • 321 Stainless Steel
  • 347 Stainless Steel
  • 446 Stainless Steel
  • Alloy 20 or Incoloy
  • Carbon Steel A105
  • Duplex 2205 Stainless Steel
  • F11 Alloy Steel
  • F22 Alloy Steel
  • F5 Alloy Steel
  • F9 Alloy Steel
  • F91 Alloy Steel
  • Hastelloy B
  • Hastelloy C-276
  • Incoloy 800
  • Inconel 600
  • Monel 400
  • Nickel 200
  • Titanium

NACE & NIST

  • Certificate of NACE Compliance (COC-NACE)

Pipe Schedule

  • Schedule 160
  • Schedule 40
  • Schedule 80

Pipe Size

  • 1”
  • 1/2”
  • 1/4”
  • 1-1/2”
  • 3/4”

Special Cleaning & Packaging

  • Cleaned for Oxygen Service

Welded Connection

  • 1” Socket Weld End Female
  • 1” Weld End
  • 1-1/2” Socket Weld End Female
  • 1-1/2” Weld End
  • 2” Socket Weld End Female
  • 2” Weld End
  • 3/4” Socket Weld End Female
  • 3/4” Weld End
