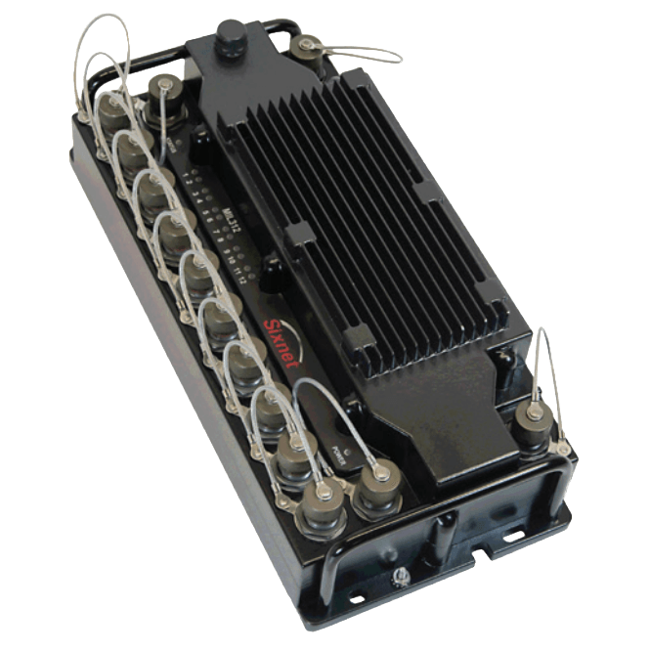

MIL312 IP67 Industrial Ethernet Switch
Brand: Red Lion ControlsRed Lion’s Sixnet MIL312 has 12 Gigabit (10/100/1000) Ethernet copper ports.
This Layer 3 managed industrial Ethernet switch features military-style D38999 connectors and link speeds of 10/100/1000 Mbps.
With an ultra-rugged case, protected circuitry and advanced software, this switch offers an ideal Commercial Off-The-Shelf (COTS) military solution for battlefield communications, combat vehicles and avionics shipboard.
It can also be used with industrial applications that require hardened switches.
1 - 12 of 1,599 Part Numbers
ET-CAT5E-100CG
- Product - 100 Cordset, CAT5e 100/1000 Ethernet MIL Plug to RJ45, x = metres
ET-CAT5E-100GG
- Product - 100 Cordset, CAT5e 100/1000 Ethernet MIL Plug to MIL, x = metres
ET-CAT5E-101CG
- Product - 101 Cordset, CAT5e 100/1000 Ethernet MIL Plug to RJ45, x = metres
ET-CAT5E-101GG
- Product - 101 Cordset, CAT5e 100/1000 Ethernet MIL Plug to MIL, x = metres
ET-CAT5E-102CG
- Product - 102 Cordset, CAT5e 100/1000 Ethernet MIL Plug to RJ45, x = metres
ET-CAT5E-102GG
- Product - 102 Cordset, CAT5e 100/1000 Ethernet MIL Plug to MIL, x = metres
ET-CAT5E-103CG
- Product - 103 Cordset, CAT5e 100/1000 Ethernet MIL Plug to RJ45, x = metres
ET-CAT5E-103GG
- Product - 103 Cordset, CAT5e 100/1000 Ethernet MIL Plug to MIL, x = metres
ET-CAT5E-104CG
- Product - 104 Cordset, CAT5e 100/1000 Ethernet MIL Plug to RJ45, x = metres
ET-CAT5E-104GG
- Product - 104 Cordset, CAT5e 100/1000 Ethernet MIL Plug to MIL, x = metres
ET-CAT5E-105CG
- Product - 105 Cordset, CAT5e 100/1000 Ethernet MIL Plug to RJ45, x = metres
ET-CAT5E-105GG
- Product - 105 Cordset, CAT5e 100/1000 Ethernet MIL Plug to MIL, x = metres
1 - 12 of 1,599 Part Numbers
Specifications
Brand
Applications
- Aerospace
- Industrial Outdoors
- Marine & Maritime
- Military In-Vehicle
- Transportation
Approvals & Certifications
- MIL-STD-810 G, 108E, 461F (EMI, EMC)
Approvals & Certifications
- EMC
- EMI
- IEEE 802.1D, 802.1w (RSTP), 802.1 s (MSTP), 802.1p, 802.3-2005, 802.1X
- RoHS
Circuit Protection
- Reverse Polarity Protection
- Surge Protection: 100 Volts for 1 second
Communication
- RS-232 Plug: D38999 / 26xA35PA
Enclosure, Body Material
- Tough Corrosion Proof Aluminum Case
Environmental Protection
- IP67
Humidity
- 5 to 95 % Relative Humidity, Non-Condensing
Indication
- LED
Input
- 20-36 Vdc (Continuous)
- 35 W (Estimated, Max.
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Power
- 250 V (50x for 100 μS)
- Spike Protection: 5,000 W (10 x for 10 μS)
- Transient Protection: 15,000 W
Storage Temperature
- -40° to 85° C (-40° to 185° F)
- Industrial outdoors
- Marine and maritime
- Transportation
- Military in-vehicle
- Aerospace
