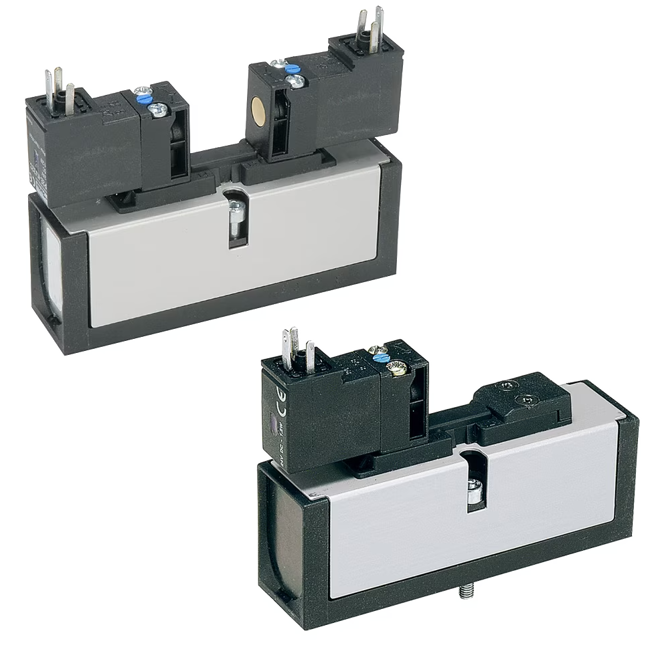

Pneumatic Solenoid ISO Valve - DX ISOMAX 15407-1 Series

Brand: Parker - Fluid Control Division

The DX ISOMAX 15407 series valve is an internal/external air piloted subbase style valve.

The ISOMAX size 01 and 02 valves are non-plugin only and can be mounted on a stand alone subbase or a multiple valve manifold. 1/8 or 1/4 NPT/BSPP ports are available.

Available valve functions are
  • 5/2, single solenoid, spring or air return
  • 5/2 position, double solenoid
  • 5/3, double solenoid, all ports blocked or center exhaust
Each coil is wired individually with a 30 mm 3 pin DIN connector. The DX ISOMAX series valves can be field converted from internal to external pilot supply by moving the gaskets located under the solenoid operators.

Internal pilot operation means the supply pressure on the #1 port is directed to the end of the valve where the solenoid operator, when actuated, allows the supply pressure to pass, which is then applied to the piston to shift the spool.

External pilot is when the valve gets its "internal" pressure from an "external pilot port" instead of the #1 port. The ISOMAX valves use a ceramic seat for low friction, fast response, and resistance to contamination.
Features
  • Configurable internal / external pilot
  • Remote pneumatic or electric pilot
  • Voltages range
  • Long life duration thanks to its ceramic technology

Specifications

Actuation

  • Solenoid Air Operated

Approvals & Certifications

  • ISO 15407-1, VDMA 24563, IP65

Body Material

  • Polyamide Reinforced Fiberglass

Electrical Connectors

  • 15 mm 3-Pin, M12

Fieldbus Protocol

  • N/A

Input Supply Voltage

  • 24 Vdc, 120 Vac

Lubricant

  • Not Required

Maximum Flow

  • 0.75 Cᵥ

Maximum Flow (Q Maximum - L/min)

  • 1050

Maximum Manifold Outlets

  • 32

Media

  • Inert Gases

Minimum Flow

  • 0.35 Cᵥ

Minimum Operating Pressure

  • 15 psig

Mounting Standard

  • ISO 15407-1

Mounting Style

  • Manifold, Subbase

Nominal Flow (Qn-L/min)

  • 720

Number of Ports

  • 5

Number of Positions

  • 2, 3

Overide Functionality

  • N/A

Port Size

  • ⅛”, ¼”

Port Type

  • BSPP, NPT

Power Consumption

  • 1.2 W, 1.6 VA

Pressure Range

  • Vacuum to 145 psig

Pressure Range

  • -0.9 to 10 bar

Seal Material

  • Ceramic Seat / Nitrile Seals

Temperature Range

  • -10°C to +60°C (+14°F to +140°F)

Valve Type

  • 4-Way

  • Machine Tool
  • Vehicle Body Assembly/Welding
  • Case Erectors
  • Palletizing
  • Wrapping/Bundling
