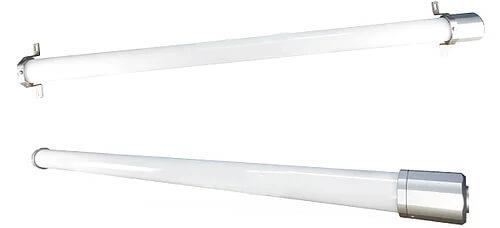

L1908 Hazardous Location Tube Light
Brand: Top Hi-Tech Inc- Volt.: 120 V / 220 V / 277 V / 347 V / 480 V AC
- Watt.: S-10 W (1 ft) / M-20 W (2 ft) / L-40 W, 60 W (4 ft) (60 W for 120 V / 220 V / 277 V only)
- Amps: 10 W (0.02 ~ 0.08 A) / 20 W (0.04 ~ 0.17 A) / 40 W (0.08 ~ 0.33 A) / 60 W (0.22 ~ 0.50 A)
- Frequency: 50 Hz / 60 Hz
- Power Factor: cos ≧ 0.9
Ambient Temperature:
- CID2: -40° C ~ +50° C, T4 / -40° C ~ +60° C, T3C
- CIID2: +50° C, T6 / +60° C, T5
Degree of Protection - IP68 / NEMA 6P
UL Certification
- UL844 - Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
- UL1598
- UL8750
- Product comes with outlet box for easier installation
- Compact size and lightweight mounting bracket design
Applicable Location
- Class I, Division 2 (Groups A, B, C and D)
- Class II, Division 2 (Group F and G)
- Class III
Specifications
Brand
Approvals & Certifications
- ABS - American Bureau Shipping
- ATEX
- GB
- IECEx
Beam
- ≥ 110°
Enclosure, Body Material
- Aluminum Alloy
Environmental Protection
- IP67
- IP68
- NEMA 6
- NEMA 6P
Frequency
- 50/60 Hz
Lens
- Tempered Glass - IEC Standards Impact-Resistant > 4 Joule
Lumens
- Per Watt: ≥ 100 (Cool White) / ≥ 90 (Warm White)
Operating Temperature
- -20° to 40° C (-4° to 104° F)
Voltage
- 24-220 Vac
Wattage
- 110 W (4.58 A / 1 A / 0.5 A) 120 W (5 A / 1.09 A / 0.55 A)
