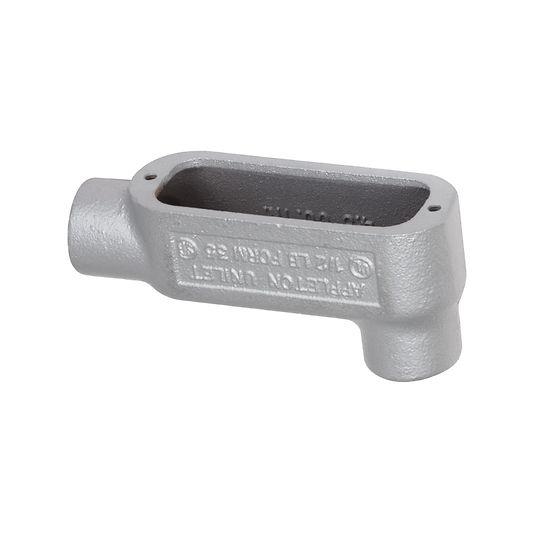

Appleton™ Form 35™ Malleable Iron Conduit Outlet Bodies

Brand: Appleton

Appleton™ Form 35™ Malleable Iron Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs.

In addition to making bends in a conduit system, they allow connections for branch runs.

These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.
Features
  • Smooth, rounded integral bushings in hubs protect conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Form 35™ malleable iron Unilets™: high tensile strength and ductility. High corrosion-resistance, high impact and shock resistance
  • Exclusive built-in easy-pulling rollers in type C (1-1/4" thru 4") and type LB (1-1/4" thru 4"): eliminate damage when cable is pulled through hubs
  • Sizes with flat-back design ideal where fitting is mounted flat against surface
  • 1/2" to 3" blank covers are domed for extra wiring space
  • Raintight when an Appleton™ cover and gasket are installed

Specifications

Brand

NEC/CEC Certifications & Compliances

  • UL Standards: 514A, 514B
  • UL Listed: E2527
  • CSA Standard: C22.2 No. 18.3
  • CSA Certified: 065183
  • NEMA Standard: FB-1

Standard Finishes

  • Steel Covers: Zinc Electroplate
  • Malleable Iron Bodies & Covers: Triple-Coat Finish (1) Zinc Electroplate, (2) Chromate, & (3) Epoxy Powder Coat

Standard Materials

  • Cover Screws: Stainless Steel
  • Blank Covers: Malleable Iron, Steel or Aluminum
  • Gasket: Neoprene or Composition Fiber
  • Body: Malleable Iron
