Elevate UltraPly™ TPO XR
Brand: Holcim Elevate
Elevate UltraPly™ TPO XR combines the durability of a single-ply membrane with an external backing of eight-ounce, non-woven polyester to offer an additional internal and external reinforcement for puncture resistance.

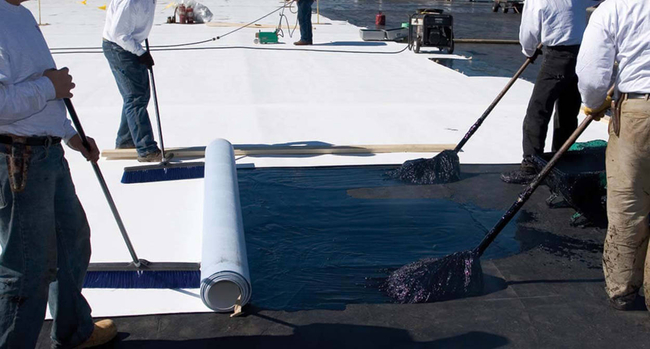

Installation flexibility enables the roofing system to be installed with either hot asphalt, Elevate UltraPly TPO XR Bonding Adhesive, foam adhesive XR Stick, or ISO Spray S.
Features- Available in white, tan or gray
- Comes in a variety of thicknesses including 100, 115 and 135-mil
- Provides weatherability and strong resistance to UV rays and common rooftop chemicals.
- Weathering, UV resistance and heat-aging properties
- Puncture resistance
- Longer warranties as compared to other systems
- Install flexibility due to the many options for securement
1 - 8 of 8 Part Numbers
W56TXR3099
W56TXR3699
W56TXRG099
W56TXRG699
W56TXRLT099
W56TXRLT699
W56TXRT099
W56TXRT699
1 - 8 of 8 Part Numbers
Specifications
Brand
Overall Thickness
- D 751
- Performance min: 0.039” (1.0 mm)
- Typical Perfomrance XR 100: 45 mil: 0.045” (1.14 mm) ± 10 %
- Typical Performance XR 115: 60 mil: 0.060” (1.52 mm) ± 10 %
Coating Over Scrim
- D 7635
- Performance Min.: 0.015” (0.38 mm)
- Typical Performance XR 100: 45 mil: 0.017” (0.43 mm)
- Typical Performance XR 115: 60 mil: 0.021” (0.53 mm)
Breaking Strength
- D 751, Grab Method
- Performance Min.: 220 lbf (979 N)
- Typical Performance XR 100: 45 mil: 340 lbf (1,512 N)
- Typical Performance XR 115: 60 mil: 390 lbf (1,735 N)
Elongation of Reinforcement Break
- D 751, Grab Method
- Performance Min.: 15 %
- Typical Performance XR 100: 45 mil: 25 %
- Typical Performance XR 115: 60 mil: 25 %
Tearing Strength
- D 751
- Performance Min.: 55 lbf (245 N)
- Typical Performance XR 100: 45 mil: 120 lbf (534 N)
- XR 100: 45 mil Typical Performance XR 115: 60 mil: 120 lbf (534 N)
Brittleness Point
- D 2137
- Performance Min.: -40° F (-40° C)
- Pass
Ozone Resistance, No Cracks
- D 1149
- Performance Min.: Pass (No Cracks)
- Typical Performance XR 100: 45 mil: Pass
- Typical Performance XR 115: 60 mil: Pass
Weight of Change
- Performance Min.: ± 1 % Max.
- Typical Performance XR 100: 45 mil: < 1 %
Linear Dimension Change
- D 1204, 6 h at 158° F (70° C)
- Performance Min.: ± 1 % Max.
- Typical Performance XR 100: 45 mil: < 1 %
Water Absorption
- D 471
- Performance Min.: ± 3 % Max.
- Typical Performance XR 100: 45 mil : < 3 %
Weather Resistance
- G 155
- Performance Min.: 10,800 kJ/m² Min.
- Typical Performance XR 100: 45 mil: > 60,000 kJ/m²
Puncture Resistance
- FTM 101C, Method 2031
Dynamic Puncture Resistance MD
- D 5635
- Typical Performance XR 100: 45 mil: Pass (60 J)
- Typical Performance XR 115: 60 mil: Pass (65 J)
Dynamic Puncture Resistance CD
- D 5635
- Typical Performance XR 100: 45 mil: Pass (55 J)
- Typical Performance XR 115: 60 mil: Pass (65 J)
