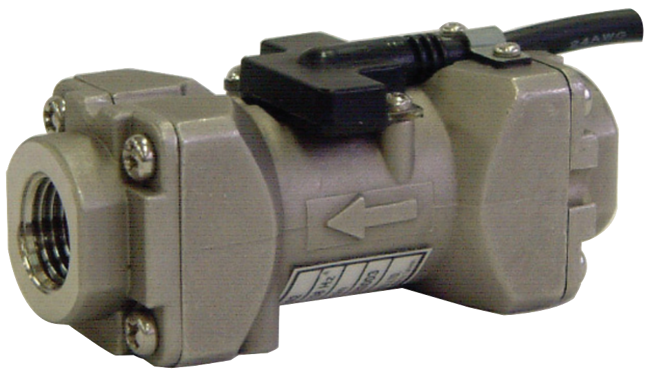

TW-080/TW-090 Mini Turbine Flowmeter

Brand: Tokyo Keiso Co, Ltd

The TW-080 and TW-090 mini-turbine flowmeters are axial flow type wheel flowmeters.

Guided by the built-in vortex guide, the fluid flowing spirally rotates the wheel made of plastic magnet. Thus the flow rate is measured by detecting the rotation of the wheel with a magnet sensor.

The flowmeter is ideal for various cooling water system with a compact design thanks to precision casting and excellent cost performance.

Specifications

Accuracy

  • ± 3 % of Full Scale

BSP Connection

  • 1/4” BSPT Female
  • 3/8” BSPT Female

Environmental Protection

  • IP62

Flow Rate

  • 0.2 to 20 L/minute

Maximum System Pressure

  • psi: 145 (bar: 10, kPa: 1,000)

Output

  • 0-5 Vdc

Temperature Range

  • 0° to 60° C (32° to 140° F)
