MTS Sensors Magnetostrictive Linear Position Sensor, ET Start/Stop

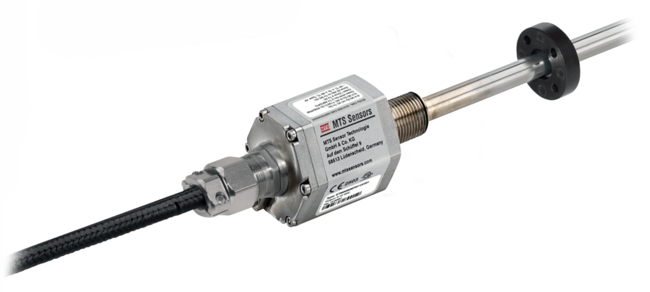

ET Start/Stop Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Add Product to My Catalog

Robust, non-contact and wear-free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors.

The position magnet is mounted on the moving machine part and travels contact-lessly over the sensor rod with the built-in waveguide.

Specifications

Brand

Approvals & Certifications

  • ATEX Ex II 3 G Ex NC IIC T4 Gc, II 3D Ex Tc IIIC T130° C Dc IP66/IP68 -40° C ≤ Ta ≤ 105° C
  • CE

Approvals & Certifications

  • EMC Electromagnetic Emission EN 61000-6-3, Immunity EN 61000-6-2
  • ISO 9001 (DQS)

Cable Material

  • Silicone
  • Teflon

Communication

  • Data Protocol: RS-422

Consumption

  • Current Consumption: Max.

Electrical Connectors

  • Cable Outlet

Electrical Protection

  • Overvoltage Protection: up to ≤ 32 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics: AISI 303 Stainless Steel 1.4305
  • Sensor Electronics: AISI 316L Stainless Steel, 1.4404

Environmental Protection

  • ATEX [psi: 29 (kPa: 200, bar: 2) at 30 minutes], Non-ATEX: IP68
  • ATEX: IP66

Flange Type

  • Flat Face (FF)

Humidity

  • 90 % Relative Humidity, Non-Condensing

Length

  • Stroke Length: 2 to 118” (50 to 3,000 mm)

Linearity

  • < ± 0.02 % of Full Scale (Min. ± 60 µm)

Materials of Construction

  • Sensor Rod: AISI 304L Stainless Steel 1.4306
  • Sensor Rod: AISI 316L Stainless Steel, 1.4404

Metric Connection

  • M18 x 1.5-6 G

Mounting Position

  • Any Orientation

Operating Pressure

  • psi: 0 to 5,076 (kPa: 0 to 35,000, bar: 0 to 350)

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • 0.005 % of Full Scale (Min. ± 20 µm)

Shock

  • 100 G (Single Shock) IEC 60068-2-27

UNF/UNC Connection

  • 3/4”-16 UNF Male-3A

Vibration

  • 15 G (10 to 2,000 Hz), IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength ATEX: 700 Vdc
  • Dielectric Strength Non-ATEX: 500 Vdc

  • Harsh Environments
  • Metal Processing
