Remote Reading Thermometer - Type A73 and A74

Brand: Tempress A/S
Add Product to My Catalog

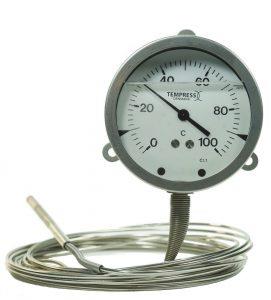

TEMPRESS remote reading thermometer, types A73 and A74 are designed for all industrial and marine applications where a capillary tube between the sensor and the instrument is required.

The thermometer can be wall mounted by means of 3 lugs, panel mounted, or supplied for bracket mounting. The filling medium is an inert gas 100% environmentally neutral.

The smooth sensor can be connected by means of a compression connector with thread according to customer requirement (nipple, union or pocket). This secures great flexibility as the immersion length can easily be adjusted as desired. A fixed union with welded retaining ring is also available.

Each and every thermometer has been manufactured with great care and is hand calibrated. The high quality of TEM-PRESS instruments secures an instru-ment with great accuracy, long life and mechanical duration.
Features
  • All stainless steel
  • Robust construction
  • Good resistance to corrosion, restistant to vibrations, wear and tear
  • Capillary tube bottom or rear connection
  • Surface, panel or bracket mounting
  • Quick response time
  • Good accuracy, class 1
  • Ambient temperature up to 100°C (option ≤ 140° C)
  • Type A73 for temperatures from -80 to + 500°C
  • Type A74 for exhaust temperature (e.g. + 50+650°C)

Specifications

Brand

Case

  • DN 80 (A7302, A7402)
  • DN 100 (A7303, A7403)

Material

  • AISI 304 natural

Bezel

  • AISI 316 natural

Window

  • Tempered safety glass

Execution

  • Silicone filled or dry

Mounting

  • Surface, panel or bracket

Capillary Tube

  • A73 AISI 316, A74

Armour

  • Steel or AISI 316

Length

  • 0,5 … 50 m

Sensor Tube Material

  • A73 AISI 316
  • A74 AISI 316Ti / AISI 321

Diameter of Stem

  • Ø 10, Ø 12 or Ø 13

Length

  • L63…L560 (standard lengths

Range

  • A73: -80/+500° C
  • A74: 0-550 or +50/650° C

Minimum Span

  • 60° C

Accuracy

  • Class 1 acc. to EN 13190

Ambient Temperature Range

  • Standard: -40… +100° C

Option

  • -40 … +140° C
  • Span > 100° requires toughened glass

  • Industrial Applications
  • Marine Applications
