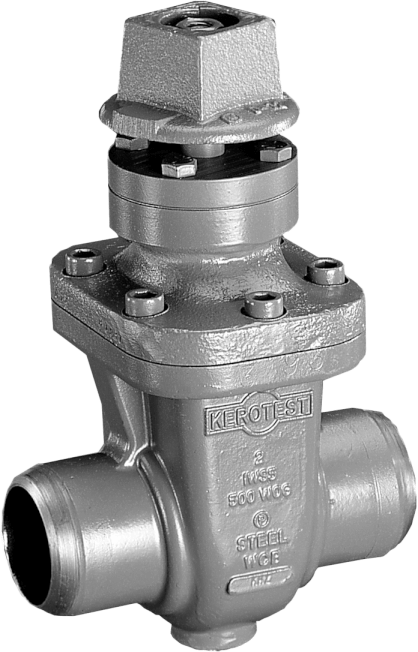

Model-1 Short Weld End
Brand: Kerotest Manufacturing CorpThe Kerotest Model-1 Steel Gate Valves feature metal-to-metal seats, the lowest operating torque in the industry and a patented packing to ensure no environmental leakage.
Choose from a full size range of 1-inch to 16-inch with a variety of end configurations and 285 to 740 WOG.
Features- Absolutely No Maintenance
- No Gland Tightening
- No Lubrication
- No Adjustment of Any Kind
- Standard Welding Practices Apply
- Full Opening – No Significant Pressure Drop
- Lowest Operating Torque in the Industry
- Steel – Safety
- Directional Solidification Weld Ends Meeting Rigid Code requirements
- Seat Test @ 110% of Rated Pressure, Shell Test @ 150% of Rated Pressure
- 2 Inch Operation Square Malleable Iron
- Buna “N” “O” Rings and “V” Rings
- Brass Packing Actuator
- Steel Packing Gland Cover
- Steel Bonnet ASTM A-216 Grade WCB
- Stainless Steel Stem
- Alloy Steel Cap Screws – ASTM A-574
- Soft Iron Bonnet Gasket (Refinery Gasket – Fire Proof)
- Steel Body – ASTM A-216 Grade WCB
Specifications
Body
- Cast steel, ASTM A216, GR. WCB
Cover
- Cast steel, ASTM A216, GR. WCB
Wedge
- Cast iron, ASTM A216, GR. B
Stem
- Stainless Steel, ASTM A581 or A582, Type 416 or 410
Gland
- Carbon steel
Packing Adapter
- Brass
Packing Set
- Buna-N
Packing Shim
- Compressed fiber
Gland Gasket
- Compressed fiber
Cover Gasket
- Corrugated steel
Operating Square
- Cast ductile iron, ASTM A536, GR. 65-45-12
Thrust Washer
- Brass, SAE 706
O-Ring
- Buna-N
Hex Head Cap Screw
- Steel, SAE GR. 5
Hex Socket Head Cap Screw
- Steel, ASTM A574
Hex Nut
- Steel, zinc-plated
Drive Screw
- Stainless Steel
Rating Tag
- 18-8 Stainless Steel
Nameplate
- 18-8 Stainless Steel
