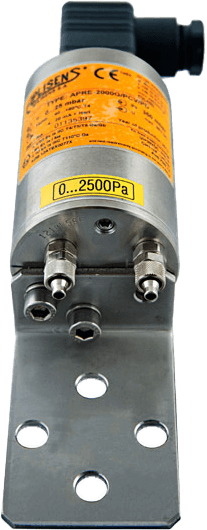

PRE-50G Smart Differential Pressure Transmitter For Low Ranges
Brand: Aplisens S.A.
Features
- Measuring range start from 250 Pa
- Output signal: 4-20 mA, 0-20 mA, 0-10 V
Specifications
Brand
Accuracy
- 0.3%
- 0.6%
- 1.6%
Thermal Error
- 1 % / 10° C
- 0.6 % / 10° C
- 0.3 % / 10° C
Measuring Range
- -150 to 500 Pa
- -0.5 to 10 kPa
Minimum Set Range
- 20 to 2,000 Pa
- 0.2 to 20 mbar
Output Signal
- 4-20 mA Two Wire Transmission
- 1-10 V Three Wire Transmission
Power Supply
- 10-36 Vdc Two Wire Transmission
- 13-39 Vdc Three Wire Transmission
Thermal Compensation Temperature
- 5° to 50° C
Operating Temperature
- -25° to 80° C
Certifications & Approvals
- EMC
- RoHS
Environmental Protection
- IP65
Housing Material
- 0H18N9 (SS304)
Adapter Material
- C Type: 316Ti Stainless Steel
- M20 x 1.5/Ø 6 x 1: Brass
Valve Manifolds
- 316 Stainless Steel
- Measurement of Blast Pressure, Chimney Draughts or Pressure / Underpressure in Furnace Chambers
