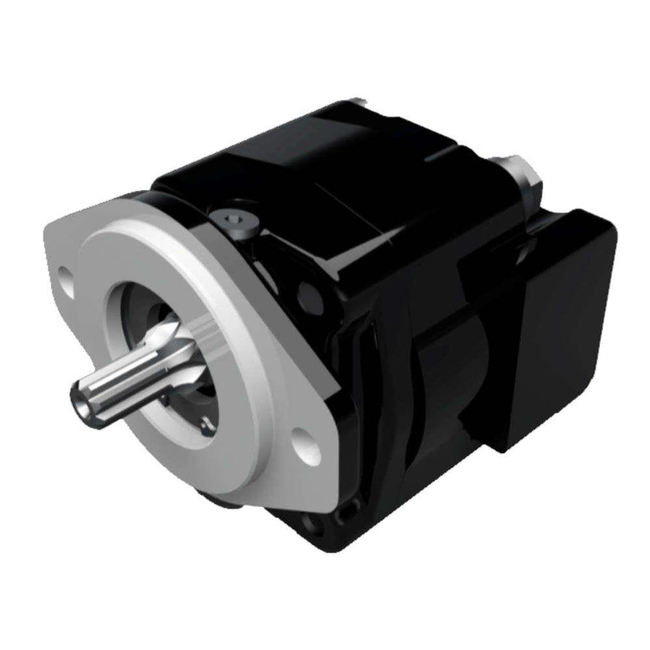

Cast Iron Motors - PGM315 Series
Brand: Parker HannifinParker’s 315 series fixed displacement gear motors offer high pressure durability due to their cast iron construction, making them ideal for high duty cycle mobile applications for the Construction, Forestry, and Oil & Gas markets.
They are available as a standard motor.
Features- Three-piece cast iron construction for distribution flexibility
- Cast Iron construction for durability
- Balanced Thrust Plates minimize friction and leakage
- Journal bearings for long life
- Multiple sections available
Specifications
Brand
Compatible Hydraulic Fluid
- Fire Resistant Fluids: Water-oil Emulsions 60/40 - HFB, Water-Glycol - HFC & Phosphate-esters - HFD, Mineral Oil
Continuous Outlet Pressure (bar)
- Up to 241 (3500 psi)
Drain Option
- Top
Maximum Inlet Pressure (psig)
- 15
Maximum Vacuum Continuous
- 13 cm (5”) Hg at Operating Temperature
Motor Displacement (cc/rev)
- 7.6 to 40.6 (0.47 to 2.48 Cir)
Mounting Style
- SAE 2-Bolt or 4-Bolt, PAD
Porting
- BSPP, Metric Split Flange, SAE Straight Thread or Split Flange
Product Type
- Motor, Cast Iron Bushing, External Gear
Rotation
- Bi-Direction
Shaft Seal Material
- NBR, FPM [FKM]
Shaft Type
- SAE Splined, Keyed or Tapered
Speed Range (rpm)
- 400 to 3000
Temperature Range (°F)
- 0° to 180° w/ Standard Seals, 0° to 150° w/ FPM Seals
Weight
- 18 lbs with 1” Gear
- Tire Trucks
- Salt and sand spreaders
- Aerial Lift
- Low boy trailers
- Live (Moving) Floor Trailers
- Roll Off Trailers
