6526 3/2-Way Solenoid Valve
Brand: Burkert Fluid Control Systems

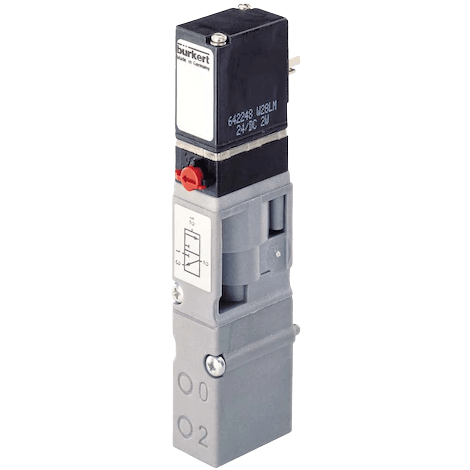

The solenoid valve Type 6526 consists of a pneumatic valve body fitted with Type 6106 rocker pilot valve. The rocker principle allows switching of high pressures together with low power consumption and fast response times.
The extendable Type 6527 can be used for block modules (tag connectors in front) or for entire valve islands (8640 and 8644 - tag connectors at the block).
All valves are equipped with manual override as a standard.
Features- Compact design
- Single and manifold mounting
- Low power consumption
- Rocker pilot in DC
- Fast response times
1 - 12 of 16 Part Numbers
156 318
- Circuit Function - C (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 10, 20/12 Milliseconds
156 320
- Circuit Function - D (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 10, 12/20 Milliseconds
156 840
- Circuit Function - C (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 8, 20/17 Milliseconds
156 841
- Circuit Function - D (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 8, 17/20 Milliseconds
156 842
- Circuit Function - C (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 1 to 10, 20/12 Milliseconds
157 672
- Circuit Function - D (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 1 to 10, 12/20 Milliseconds
158 944
- Circuit Function - C (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 10, 20/12 Milliseconds (Electrical Connection Above Manual Override & Long Version)
158 946
- Circuit Function - D (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 10, 20/12 Milliseconds (Electrical Connection Above Manual Override & Long Version)
158 947
- Circuit Function - C (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 8, 20/12 Milliseconds (Electrical Connection Above Manual Override & Long Version)
158 948
- Circuit Function - D (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 8, 20/12 Milliseconds (Electrical Connection Above Manual Override & Long Version)
160 405
- Circuit Function - C (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 10, 20/12 Milliseconds (Electrical Connection Above Manual Override & in Combination with Valve Islands the Closing Time Will be Approximately 5 Milliseconds Longer)
160 407
- Circuit Function - D (3/2-Way Valve)
- Pressure Range, Opening / Closing Response Time - bar: 2 to 10, 20/12 Milliseconds (Electrical Connection Above Manual Override & in Combination with Valve Islands the Closing Time Will be Approximately 5 Milliseconds Longer)
1 - 12 of 16 Part Numbers
Specifications
Ambient Temperature Range
- -10° to 55° C (14° to 131° F)
Consumption
- Power: 1 W
- Power: 2 W
Duty Cycle
- Continuous Operation 100 % ED
Electrical Connectors
- G 1/8”
- Pneumatic Module: Push-In Connection Ø 8 mm
- Tag Connector According to DIN EN 175301-803 (Previously DIN 43650) Form C-Typical 2506
Enclosure, Body Material
- Polyamide (PA)
Environmental Protection
- IP65
Flow Rate
- QNn Value Air: 700 L/minute
Media
- Lubricated Dry Air
- Neutral Gases (10 μm Filtering)
- Non-Lubricated Dry Air
Mounting
- With 2 Screws M3 x 30
Mounting Position
- Preferably with Actuator Upright
Nominal Power
- 1 W
- 2 W
Orifice Size
- 6 mm
Override
- Manual Override
Pressure Range
- psi: 14.5 to 145 (kPa: 100 to 1,000, bar: 1 to 10)
Process Temperature
- -10° to 50° C (14° to 122° F)
Response Time
- Opening & Closing: 12 to 20 milliseconds According to ISO 12238
Seat / Seal Material
- Seal: NBR
Solenoid Type
- 3/2-Way
Tolerance
- Voltage: ± 10 %
Voltage
- 24 Vdc
