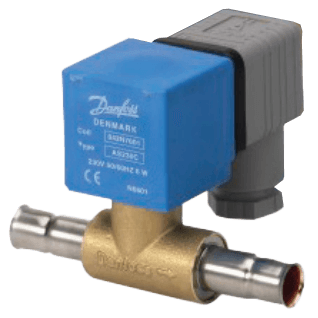

EVU Solenoid Valve
Brand: Danfoss
EVU solenoid valves are designed to fit into compact refrigeration systems. Available in direct and pilot operated versions, they can be applied in liquid, suction, and hot gas lines with fluorinated refrigerants.
EVU valves are available in straightway or angleway design. All valves are semi hermetically sealed and are not serviceable. The standard coil is available with 3-core cable connection and DIN plug.
EVU valve bodies and coils are ordered separately in industrial pack.
Features- Compact construction small dimensions, low weight for both valve and coil
- Semi-hermetic construction. Metallic sealing between armature tube and valve body. Bimetal connections to the brass housing benefits:
- High strength of joints and high vibration resistance
- Maximum external tightness within the whole temperature and pressure operation range
- Bimetal connections simple, fast soldering without the need of wet cloth or refrigration pliers
- Direct and servo operated mini piston compact solenoid valve
- Universal application for liquid, suction, and hot gas applications and reduced power consumption
- Simple and fast mounting of coil - clip-on/off
- Small encapsulated coils with long life time under extreme conditions
- Refrigerants: R744, R22/R407C, R404A/R507, R410A, R134a, R407A, R23
- Large MOPD range − up to 36 bar
1 - 12 of 17 Part Numbers
032F
- Valve Type - EVU 1
032F5024
- Valve Type - EVU 3
- Connection - 1/4"
032F5025
- Valve Type - EVU 3
- Connection - 6 mm
032F5026
- Valve Type - EVU 3
- Connection - 3/8"
032F5027
- Valve Type - EVU 3
- Connection - 10 mm
032F5037
- Valve Type - EVU 4
- Connection - 10 mm
032F5046
- Valve Type - EVU 6
- Connection - 3/8"
032F5047
- Valve Type - EVU 6
- Connection - 10 mm
032F5048
- Valve Type - EVU 6
- Connection - 12 mm
032F5049
- Valve Type - EVU 6
- Connection - 1/2"
032F5053
- Valve Type - EVU 2
- Connection - 6 mm
032F7000
- Valve Type - EVU 5
- Connection - 3/8"
1 - 12 of 17 Part Numbers
Specifications
Brand
Ambient Temperature Range
- -40° to 50° C (-40° to 122° F)
Applications
- Air Conditioning Systems
- Commercial & Mobile Refrigeration Systems, Refrigeration Appliances
- Heat Pump Systems
- Ice Cube Machines
- Liquid Coolers
Approvals & Certifications
- Low Voltage Directive (LVD) 2006/95/EC
- PED 97/23/CE A3.P3
- UL Recognized Component (Canadian & US)
Capacity
- Rated Capacity (Hot Gas): 0.73-13.97 KW
- Rated Capacity (Liquid): 1.40-20.10 KW
- Rated Capacity (Suction Vapor): 0.16-2.90 KW
Connection Style
- Solder Terminals
Electrical Contacts
- Normally Closed
Enclosure, Body Material
- Brass
Flow Rate
- Kv: 0.10 to 1.00 m³/hour
Humidity
- 0 to 100 % RH (0 to 97 % RH, Non-Condensing for Below IPX5)
Materials of Construction
- Bi-Metallic Tube: Copper
- Bi-Metallic, Armature & ArmatureTube: Stainless Steel
- Pilot Plate: Thermoplastic (PEEK)
Maximum Opening Pressure Differential
- psi: 0.29 to 522 (kPa: 2 to 3,600, bar: 0.02 to 36)
Nut & Bolt Material
- Union Nut: Brass
Operating Pressure
- psi: 1,015 (kPa: 7,000, bar: 70) - Max.
Piston Material
- Brass
Process Temperature
- 130° C (266° F) - Max.
- -40° to 105° C (-40° to 221° F)
Ring Material
- Solder Ring: Silver
- Support Ring: Teflon (PTFE)
Seat / Seal Material
- Seat Plate: Teflon (PTFE)
Spring Material
- Spring Wire Stainless Steel
Tube Connection
- 1/2" Tube
- 1/4" Tube
- 3/8" Tube
