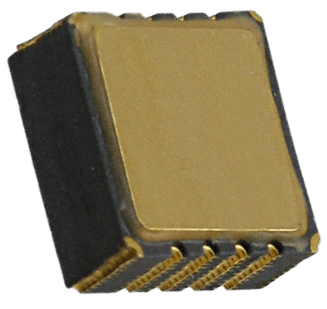

3038 Embedded Accelerometer
Brand: American Sensor Technologies Inc
The Model 3038 is a hermetically sealed SMD accelerometer designed for high performance applications.
The accelerometer incorporates a gas-damped piezo resistive MEMS sensing element providing outstanding long-term stability. The model 3038 provides a millivolt output signal and features mechanical overload stops that provide shock protection to loads greater than 10,000g.
Features- ±50g to ±6,000g Dynamic Ranges
- Board Mountable Accelerometer
- Low Power Consumption
- Hermetic LCC Package
- DC Response, Gas Damping
- 5,000 Hz Bandwidth
1 - 12 of 12 Part Numbers
3038-0050
- Range - ± 50 G
- Options - Standard
3038-0050-01
- Range - ± 50 G
- Options - 10 Vdc Calibration
3038-0100
- Range - ± 100 G
- Options - Standard
3038-0100-01
- Range - ± 100 G
- Options - 10 Vdc Calibration
3038-0200
- Range - ± 200 G
- Options - Standard
3038-0200-01
- Range - ± 200 G
- Options - 10 Vdc Calibration
3038-0500
- Range - ± 500 G
- Options - Standard
3038-0500-01
- Range - ± 500 G
- Options - 10 Vdc Calibration
3038-2000
- Range - ± 2,000 G
- Options - Standard
3038-2000-01
- Range - ± 2,000 G
- Options - 10 Vdc Calibration
3038-6000
- Range - ± 6,000 G
- Options - Standard
3038-6000-01
- Range - ± 6,000 G
- Options - 10 Vdc Calibration
1 - 12 of 12 Part Numbers
Specifications
Accuracy
- ± 1 to ± 2 % of FSO - Non-Linearity
Applications
- Embedded Applications
- Impact Testing
- Machinery Industry
- Modal Applications
- Motion Analysis
- Vibration Sensing
Approvals & Certifications
- CE
- RoHS
Constant Acceleration
- ± 50 to ± 6,000 G
Electrical Connectors
- Solder
Enclosure, Body Material
- Ceramic
Excitation Voltage
- 2-10 Vdc
Frequency
- 0 to 5,000 Hz
- 4,000 to 26,000 Hz - Natural Frequency
Insulation Resistance
- > 100 MΩ
NACE & NIST
- NIST
Operating Temperature
- -55° to 125° C (-67° to 257° F)
Output
- ± 25 mV - Zero Acceleration Output
Output Noise
- 10 µV RMS
Resistance
- 2,400 to 6,500 ohms
Sensitivity
- < 3 % - Transverse Sensitivity
- 0.05-1 mV/g
Shock
- 10,000 G
Storage Temperature
- -55° to 125° C (-67° to 257° F)
Thermal Drift
- -0.09 % of FSO/°C - Thermal Zero Shift
Torque
- 6 in/lb
