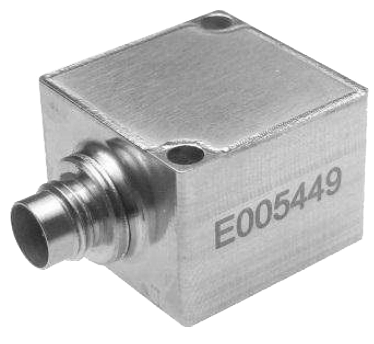

4835A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 4835A is an ultra-stable MEMS triaxial accelerometer in a rugged, welded Titanium package.
The variable capacitance MEMS accelerometer incorporates integral temperature compensation that provides a stable output over a wide temperature range from -55° C to 125° C.
Offered in ranges from ±2 to ±200 g, the model 4835A accelerometer also provides a wide bandwidth from DC to 1000 Hz for both static and dynamic measurements.
Features- ±2 g to ±200 g Dynamic Range
- Amplified Output
- 8-36 Vdc Excitation Voltage
- Hermetically Sealed, Detachable Cable
- Gas Damped MEMS Element
- Temperature Compensated
- Low Transverse Sensitivity
Specifications
Accuracy
- ± 1.0 % of Full Scale - Non-Linearity
Applications
- Flight Testing
- Low Frequency Monitoring
- Machine Control
- Road Vehicle Testing
- Trains
- Transportation
Environmental Protection
- IP67
Excitation Voltage
- 12-36 Vdc
Frequency
- 0 to 1,000 Hz
Insulation Resistance
- > 100 megaohms at 100 Vdc
Mounting
- M3 Screws
Operating Temperature
- -55° to 121° C (-67° to 250° F)
Output
- ± 2 V - Full Scale Output Voltage
- ± 50 mV - Zero Acceleration Output
Output Load
- < 100 ohms - Output Impedance
Output Noise
- 550 to 800 µV RMS - Residual Noise
Power Requirement
- ≤ 15 mA - Excitation Current
Sensitivity
- < 2 % - Transverse Sensitivity
- ± 0.004 %/°C - Thermal Sensitivity Shift
Shock
- 2000 to 5000 G
Storage Temperature
- -55° to 121° C (-67° to 250° F)
Thermal Drift
- ± 0.004 % of Full Scale Output/°C
Torque
- 6 In/Lbs
Turn-On Time
- < 100 milliseconds
