3036-Series 30" x 36" 2 hp Pre-Assembled Simplex Grinder Package

Brand: Liberty Pumps

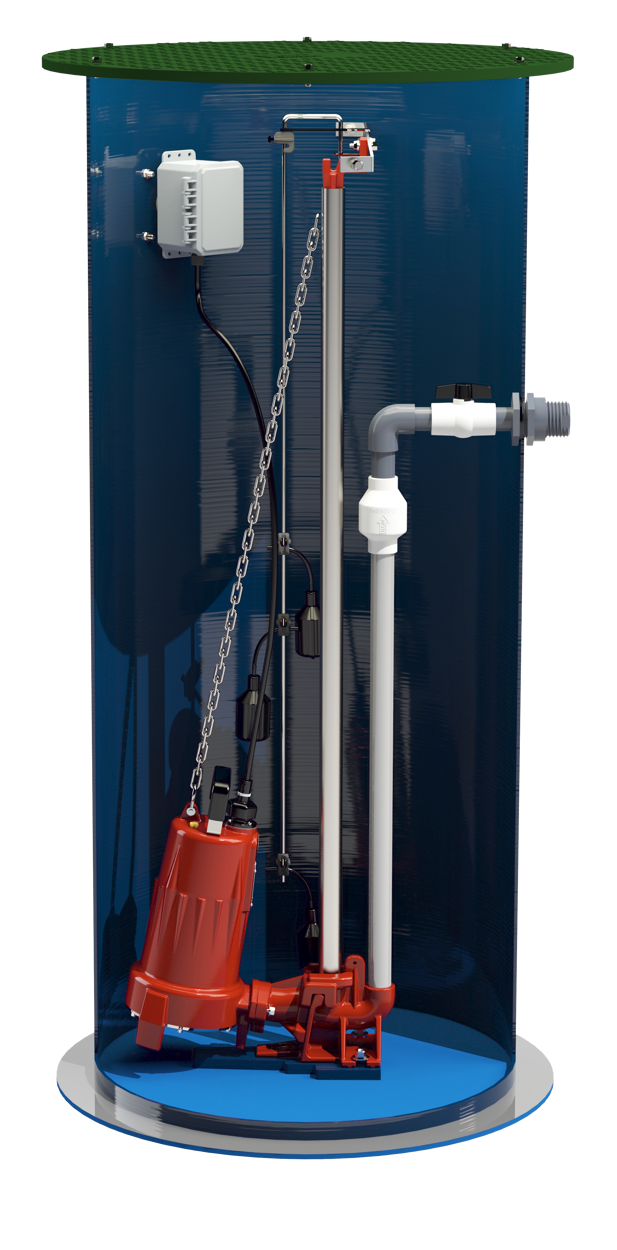

For residential and commercial applications, the 3036LSG is a complete factory assembled simplex grinder package featuring the LSG200-Series 2 hp Omnivore® grinder pump.

All internal brackets, floats, guide rail base and discharge piping is pre-installed at the factory saving hours of labor at the job site.
Features
  • Factory assembled simplex grinder package with 30" x 36" fiberglass basin and Omnivore® grinder pump
  • 2 hp grinder pump available in various voltages
  • Anti-flotation collar
  • Solid, heavy-duty fiberglass cover (optional black steel, solid)
  • GR20 guide rail assembly
  • Galvanized guide rail piping (stainless optional)
  • All internal piping and brackets pre-mounted
  • Floats are pre-mounted at factory-set levels
  • All stainless steel fasteners
  • 1-1/4" Schedule 80 PVC discharge piping with ball valve and check valve
  • ALM-2W alarm and NEMA 4x wiring box

Specifications

Discharge Size

  • 1-1/4"

Cable Length

  • 25 ft

Basin Dimensions

  • 30" x 36"

Grinder Pump

  • 2 hp

Cover Material

  • Steel
  • Structural Foam

Material of Construction

  • Rail Pipe: Galvanized Guide, Stainless Optional
  • Basin: Fiberglass
  • Chain for Pump Lift-Out: Stainless Steel

Discharge Depth

  • 12" (From Top of Basin)

Basin Capacity

  • 110 gal (416 liters)

Volume Per Pump Cycle

  • 21 gal (79 liters)

Alarm Level

  • 24.5" (62 cm)

On Level

  • 16.5" (42 cm)

Off Level

  • 9.5" (24 cm)

Certifications and Approvals

  • cCSAus
  • SSPMA
