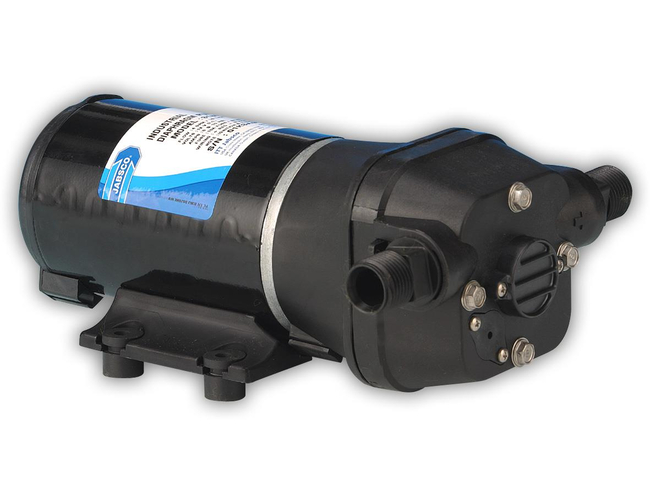

4GPM 15LPM Industrial Diaphragm Pump
Brand: Jabsco
Features
- Pump Body: Glass Filled Polypropylene
- Elastomers: Diaphragm made of Santoprene
- Valves made of Viton
- Hardware: 316 Stainless Steel
- Pump Design: Four-Chamber Diaphragm
- Suction Lift: Self-Priming to 10 ft (3 m) (Wet) 5 ft. (1.5 m) (Dry)
- Ports: 1/2" (13 mm) Hose Barb and 1/2" (13 mm) Straight Pipe Thread
- Motor: Permanent Magnet with Thermal Overload Protection
- Shipping Weight: 5.5 lbs (2.5 kg) approx. (12/24 V models)
- Duty Cycle: Continuous at 15 psi (1 bar) and 70°F (21°C) ambient temperature
- Temperature: Liquid temperature range is 45°F to 130°F (7°C to 54°C)
- Viscosity: 250 cP maximum
- Self Priming
- Can run dry without damage
- Flow to 4GPM/15LPM
- Thermal Overload Protected Motor
- Snap-in 1/2" Diameter Port Adapters
- Easy Installation
- Low Amp Draw
- Quiet Running
1 - 4 of 4 Part Numbers
1 - 4 of 4 Part Numbers
Specifications
Brand
Voltage
- 12 VDC / 24 VDC
Amp Draw
- 3 A / 6 A
Pressure Switch Setting
- No Switch
- 20 psi (1.4 bar) Cut-In, 40 psi (2.8 bar) Cut-Out
