Wise Bar Stock Thermowell, A610, A611, A612, A623

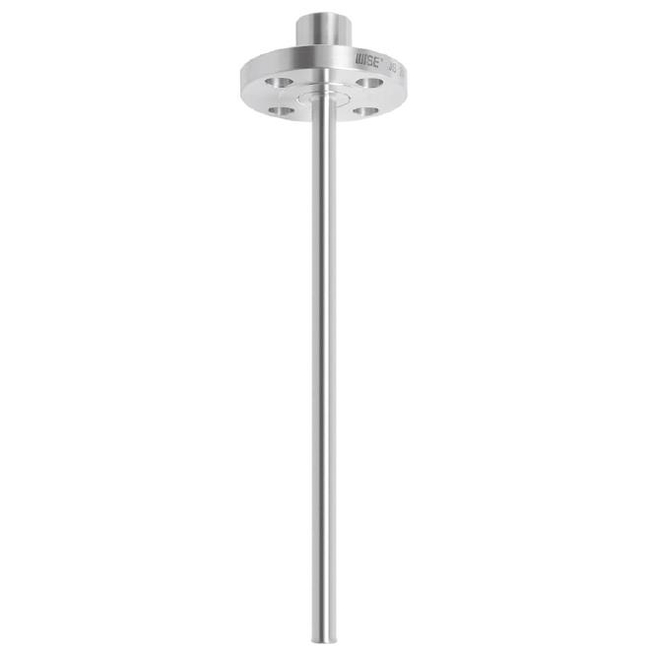

Bar Stock Thermowell with Flange Connection A610, A611, A612, A623

Brand: Wise Control Inc
Add Product to My Catalog

Temperature sensors or indicating type temperature gauges are not directly inserted into the process pipe, unless these are used to measure the outside temperature of process pipe, instead, these are used with thermowells.

By using thermowells, sensors and gauges will not interfere with the process line operation, and the users are able to perform the maintenance procedure of the process line more easily.

These types are most common bar type, and these are installed onto the process line by attaching a flange. It is useful in the process line where a high pressure and a fast current exist.

A623 is manufactured with a Full Penetration welding procedure so it can be used in a high pressure gas line.

Specifications

Brand

Selection of Thermowell - Bore Size

  • Almost any installation uses several typical of Temperature measuring Instruments. The selection of a Standard bore diameter can produce extreme flexibility within the pant.

Selection of Thermowell - Insertion

  • The Distance from the End of the Well to the Underside of the Thread or other Connection Means (Designated as ”U”) is the Insertion Length.

Selection of Thermowell - Material

  • In General, the Thermowell Material Chosen for the Installation is Governed Mainly by the Corrosion Condition the Themowell Will Face. Recommended Material for Various Services are Given in the Corrosion Table.Occasionally, the Material Consideration is O

Selection of Thermowell - Option

  • Wake Frequency Calculations in Accordance with ASME PTC 19.3
  • WISE Inc. Offers This as an Engineering Service.

Selection of Thermowell - Tapered or Straight Type

  • Tapered Typical Thermowells Provide Greater Stiffness for the Same Sensitivity. the Higher Strength to Weight Ratio Gives These Thermowells Higher Natural Frequency Than for Equivalent Length Straight Typical Thermowells, Thus Permitting Operation at High
