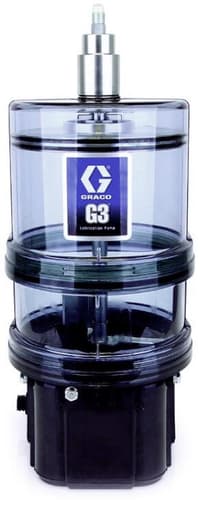

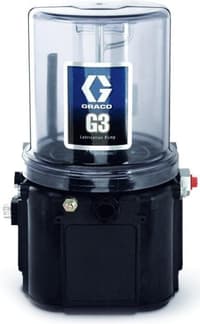

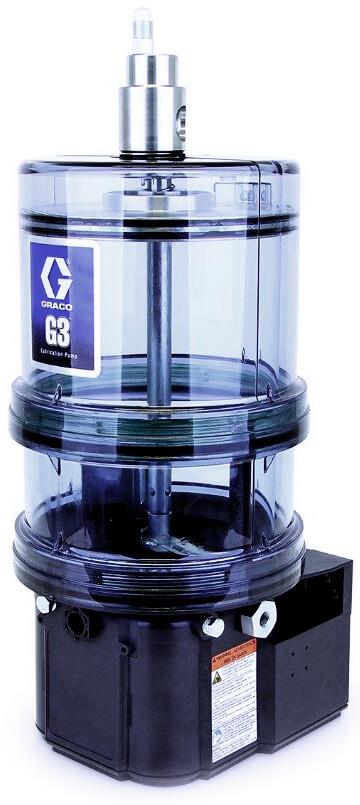

G3 Standard Automatic Lubrication for Series Progressive Systems

G3 Standard Automatic Lubrication for Series Progressive Systems

Brand: Graco, Inc
Add Product to My Catalog

G3 Standard Automatic Lubrication for Series Progressive Systems G3 Standard Automatic Lubrication for Series Progressive Systems
G3 Standard is a cost-effective pump designed to serve multiple markets and applications.

Three controllers to choose from with multiple zone and feedback options. Includes one adjustable pump element–standard, plus room for two more. Multiple reservoir choices and more! The ultimate in flexibility–for a high value, custom fi t on your application.
Features
  • No internal controller–use with separate or existing machine control for a low cost solution.
  • Capable of sending a low level signal to your external controller or PLC.

Specifications

Brand

100-240 Vac

  • 88 - 264 Vac, 0.8 A Current, 90 VA Power, 47/63 Hz, Single-Phase, in Rush/Locked Rotor, Max. 40 A (1 ms)

12 Vdc

  • 9 - 16 Vdc, 5 A Current, 60 W, Inrush/Locked Rotor 12 A

24 Vdc

  • 18 - 32 Vdc, 2.5 A Current, 60 W, Inrush/Locked Rotor 6 A

Ambient Temperature Range

  • -40° to 70° C

Carry Current

  • 1.2 A, Max.

Contact Rating

  • 10 Watts, Max.

Grease Models

  • Grease NLGI 000 - #2

IP Protection Rating

  • IP69K

Maximum Working Pressure

  • 35.1 MPa, 351.6 bar

Oil Models

  • At Least 40 cSt Oil

Pump Outlet

  • 1/4-18 NPSF. Mates with 1/4-18 Male NPT Fittings

Pump Output - 0 Spacers

  • 0.25 Cubic inch (4 Cubic cm)/Minute Per Outlet - 0 Spacers

Pump Output - 1 Spacer

  • 0.18 Cubic inch (3 Cubic cm)/Minute Per Outlet - 1 Spacer

Pump Output - 2 Spacers

  • 0.12 Cubic in (2 Cubic cm)/Minute Per Outlet - 2 Spacer

Pumps

  • Up to 3

Reservoir Size

  • 2, 4, 8, 12, 16 Liters

Sound Data

  • Lt, 60 dB

Switch Rating

  • 200 Vdc, Max.

Switching Current

  • 0.5 A, Max.

Weight (Dry - Includes Power Cord & Plug) with Follower Plate

  • 6.44 kg

Weight (Dry - Includes Power Cord & Plug) without Follower Plate

  • 6.03 kg

Wetted Parts

  • Nylon 6/6 (pa), Trogamid T5004-060, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber (Buna-N), Bronze, Nickel-Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid

Documentation

Document

Instructions
