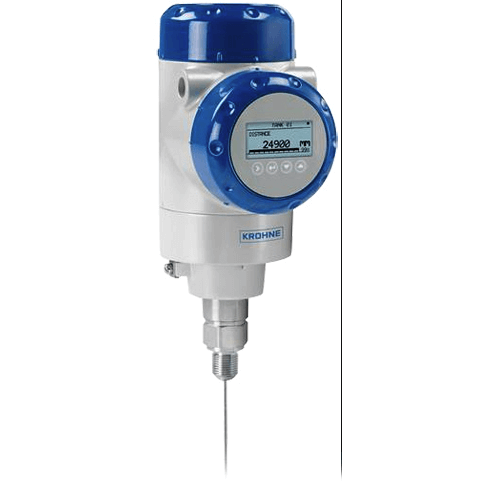

Krohne Guided Radar (TDR) Level Transmitter, OPTIFLEX 2200

OPTIFLEX 2200 Guided Radar (TDR) Level Transmitter

Brand: Krohne
Add Product to My Catalog

Krohne Guided Radar (TDR) Level Transmitter, OPTIFLEX 2200
This device is a TDR level transmitter for measuring distance, level, volume and mass. Its modular design makes it an economical and reliable solution for common applications.
Features
  • 2-wire loop-powered HART TDR level transmitter for liquids and solids
  • DPR (Dynamic Parasite Rejection): the software dynamically eliminates false reflections caused by environmental disturbances and product build-up
  • Quick coupling system permits removal of the converter under process conditions and 360° rotation to make the display screen easier to read
  • Horizontal and vertical housing position to suit every installation
  • The remote converter can be installed up to 328 feet (100 meters) from the probe
  • Display keypad is directly accessible without opening the cover
  • Measuring range up to 131 feet (40 meters)
  • SIL2-compliant according to IEC 61508 for safety-related systems
  • The device has FDT1.2 DTM certification

View_Details

Specifications

Brand

Approvals & Certifications

  • ATEX II 1/2 G Ex ia IIC T6 Ga/Gb + II 1/2 D Ex ia IIIC Da/Db, II 1/2 G Ex d Ia IIC T6 Ga/Gb + II 1/2 D Ex ia Tb IIIC Da/Db, II 3 G Ex Ic IIC T6 Gc + II 3 D Ex Ic IIIC Dc (Zone 2 & 22)
  • CE
  • CRN - Canadian Registration Number
  • DNV 13.0142 X
  • EAC
  • EMC Directives 2004/108/EC in Conjunction with EN 61326-1 (2013)
  • FM (C,US) IS Class I, II, III, Div. 1 Groups A, B, C, D, E, F, G, + Class I Zone 0/20 Ex ia IIC/IIIC T6, XP-AIS/DIP Class I, II, III, Div. 1 Groups A, B, C, D, E, F, G, (A Not for CAN) + Class I Zone 0/20 Ex d[ia]/tb[ia] IIC/IIIC T6, NI Class I, II, III, Div. 2 Groups A, B, C, D, E, F, G, + Class I Zone 2 Ex NA IIC T6
  • IEC Ex Ex ia IIC T6 Ga/Gb + Ex ia IIIC Da/Db, Ex d Ia IIC T6 Ga/Gb + Ex ia Tb IIIC Da/Db, Ex Ic IIC T6 Gc + Ex Ic IIIC Dc (Zone 2 & 22)
  • INMETRO Ex ia IIC T6 Ga/Gb + Ex ia IIIC Da/Db, Ex d Ia IIC T6 Ga/Gb + Ex ia Tb IIIC Da/Db, Ex Ic IIC T6 Gc + Ex Ic IIIC Dc (Zone 2 & 22)
  • NAMUR: NE 21, 43, 53
  • NEPSI Ex ia IIC T6 Ga/Gb + DIP A20/A21, Ex d Ia IIC T6 Ga/Gb + DIP A20/A21
  • WHG (Overfill Protection)

BSP Connection

  • G 1" A (ISO 228)
  • Single Cable Ø 2 mm / 0.08": G 1/2" A (ISO 228)
  • Single Cable Ø 4 mm / 0.16", Single Rod Ø 8 mm / 0.32", Coaxial Ø 22 mm / 0.87": G 3/4" A (ISO 228)
  • Single Cable Ø 8 mm / 0.32", Double Cable Ø 4 mm / 0.16", Double Rod Ø 8 mm / 0.32": G 1-1/2" A (ISO 228)

Enclosure, Body Material

  • 316L Stainless Steel, 1.4401

Environmental Protection

  • IP66
  • IP67
  • NEMA 250: NEMA 4X (Housing)
  • NEMA 250: NEMA 6P (Probe)

Flange Size - 1-1/2” (DN 40)

  • 1-1/2" (DN 40) - 150# ASME B16.5
  • 1-1/2" (DN 40) - 300# ASME B16.5
  • 1-1/2" (DN 40) - JIS 10K (JIS B2220)
  • 1-1/2" (DN 40) - PN 10 (EN 1092-1)
  • 1-1/2" (DN 40) - PN 16 (EN 1092-1)
  • 1-1/2" (DN 40) - PN 25 (EN 1092-1)
  • 1-1/2" (DN 40) - PN 40 (EN 1092-1)

Flange Size - 1” (DN 25)

  • 1" (DN 25) - 150# ASME B16.5
  • 1" (DN 25) - 300# ASME B16.5
  • 1" (DN 25) - PN 10 (EN 1092-1)
  • 1" (DN 25) - PN 16 (EN 1092-1)
  • 1" (DN 25) - PN 25 (EN 1092-1)
  • 1" (DN 25) - PN 40 (EN 1092-1)

Flange Size - 2” (DN 50)

  • 2" (DN 50) - 150# ASME B16.5
  • 2" (DN 50) - 300# (ASME B16.5, ANSI BM 26 F)
  • 2" (DN 50) - JIS 10K (JIS B 2220)
  • 2" (DN 50) - PN 10 (EN 1092-1)
  • 2" (DN 50) - PN 16 (EN 1092-1)
  • 2" (DN 50) - PN 25 (EN 1092-1)
  • 2" (DN 50) - PN 40 (EN 1092-1)

Flange Size - 3” (DN 80)

  • 3" (DN 80) - 150# ASME B16.5
  • 3" (DN 80) - 300# ASME B16.5
  • 3" (DN 80) - JIS 10K (JIS B 2220)
  • 3" (DN 80) - PN 10 (EN 1092-1)
  • 3" (DN 80) - PN 16 (EN 1092-1)
  • 3" (DN 80) - PN 25 (EN 1092-1)
  • 3" (DN 80) - PN 40 (EN 1092-1)

Flange Size - 4” (DN 100)

  • 4" (DN 100) - 150# ASME B16.5
  • 4" (DN 100) - 300# ASME B16.5
  • 4" (DN 100) - JIS 10K (JIS B 2220)
  • 4" (DN 100) - PN 10 (EN 1092-1)
  • 4" (DN 100) - PN 16 (EN 1092-1)
  • 4" (DN 100) - PN 25 (EN 1092-1)
  • 4" (DN 100) - PN 40 (EN 1092-1)

Flange Size - 6” (DN 150)

  • 6" (DN 150) - 150# ASME B16.5
  • 6" (DN 150) - 300# ASME B16.5
  • 6" (DN 150) - JIS 10K (JIS B 2220)
  • 6" (DN 150) - PN 10 (EN 1092-1)
  • 6" (DN 150) - PN 16 (EN 1092-1)
  • 6" (DN 150) - PN 25 (EN 1092-1)
  • 6" (DN 150) - PN 40 (EN 1092-1)

Flange Size - 8” (DN 200)

  • 8" (DN 200) - 150# ASME B16.5
  • 8" (DN 200) - 300# ASME B16.5
  • 8" (DN 200) - JIS 10K (JIS B2220)
  • 8" (DN 200) - PN 16 (EN 1092-1)
  • 8" (DN 200) - PN 40 (EN 1092-1)

NACE & NIST

  • NACE MR-0175, MR-0103

NPT Connection

  • 1" NPT - ASME B1.20.1
  • Single Cable Ø 2 mm / 0.08": 1/2" NPT Female (ASME B1.20.3)
  • Single Cable Ø 4 mm / 0.16", Single Rod Ø 8 mm / 0.32", Coaxial Ø 22 mm / 0.87": 3/4" NPT (ASME B1.20.1)
  • Single Cable Ø mm / 0.32", Double Cable Ø 4 mm / 0.16", Double Rod Ø 8 mm / 0.32": 1-1/2" NPT (ASME B1.20.1)

Operating Pressure

  • psig: -14.5 to 580 (kPa: -100 to 4,000, barg: -1 to 40)

Operating Temperature

  • -50° to 300° C (-58° to 572° F)

Output

  • 3.8 - 20.5 mA According to NAMUR NE 43
  • 4-20 mA HART

Power Supply

  • Intrinsically Safe for FOUNDATION Fieldbus: 9-24 Vdc
  • PROFIBUS PA, FOUNDATION Fieldbus: 9-32 Vdc
  • Terminals Output - Ex d: 13.5-36 Vdc
  • Terminals Output - Non-Ex / Ex I: 11.5-30 Vdc

Pressure Range

  • barg: -1 to 40
  • kPa: -100 to 4,000
  • psig: -14.5 to 580
