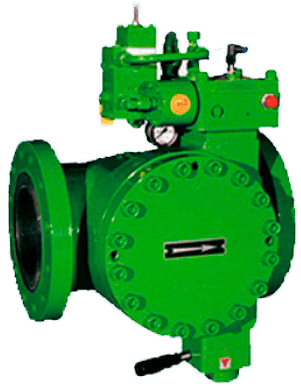

HON 711 - DN 25 thru 150 Safety Shut-Off Valve
Brand: Honeywell International IncHoneywells HON 711 – DN 25 thru 150 is a Safety Shut-off Valve (SSV), direct-acting or pilot-operated, according to EN 14382.
It is ideal for use at transmission stations in gas networks for power plants and industrial facilities.
What Is It?
Features include:
- Very low pressure loss due to axial flow
- Four release options, standard design with manual release
- High response accuracy
- Available with actuator systems: K 10a, K 11a/1, K 11a/2, K 16, K 17, K 18, K 19
- Function Class A (B)
- Easy maintenance
- Optionally with vent valve HON 915
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- SIL certified according to IEC61508
- Max. admissible pressure PS: 100 bar
- Max. operating pressure pmax:up to 100 bar
- Outlet pressure range
- For over-pressure Wdso 50 mbar to 90 bar
- For under-pressure Wdsu 10 mbar to 90 bar
- Connection: DIN flange PN 25, PN 40 and Flange Class 300, Class 600 according to ANSI 16.5 in DN 25 to DN 150 Flange Class 900 upon request
- Response time t: 0.1 to 0.3 s
- Additional features (as requested by customer)
- Electromagnetic release
- Electric signal sensor for valve position 'closed' (proximity switch)
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfill the ATEX requirements.
