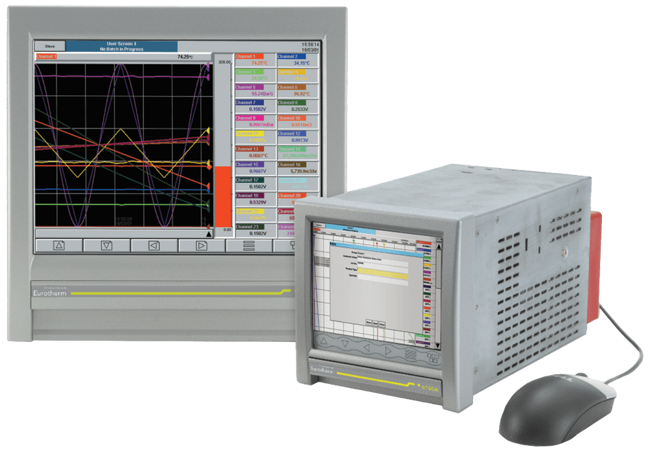

6100A/6180A Paperless Graphic Recorder

Brand: Eurotherm

The 6000 Series offer unrivalled input accuracy with a 125 Milliseconds total sample rate for up to 48 input channels. Input channels are freely configurable to suit your process requirements.

Each instrument has an intuitive, touch screen display to enable operators to clearly view process data in varying formats. All have onboard Flash data storage capability, Ethernet communication and choice of Compact Flash or SD card.

Data is stored in a tamper-resistant binary format that can be used for secure, long term records of your process. The 6000 Series is truly designed for todays networked world and can be accessed via a Local Area Network, dial-up connection, Intranet or Internet.
Features
  • Colour touchscreen display
  • USB 'plug and play'
  • Up to 48 universal Inputs
  • Up to 96MB non-volatile flash memory
  • 125 Milliseconds parallel sampling
  • Compact flash or secure digital card
  • Modbus RTU
  • Ethernet TCP/IP
  • Web server
  • EtherNet/IP server
  • Multi-language support (French, Dutch, German, Italian, Japanese, Korean, Portuguese, Russian and Simplified Chinese)

Specifications

Brand

Approvals & Certifications

  • Calibration Certificate

Approvals & Certifications

  • CE
  • EMC
  • Emissions & Immunity: BS EN 61326
  • FDA Regulation 21 CFR
  • IEC 584.1, 751
  • UL E57766

Battery Life

  • Back-Up Battery of Replacement Period: 3-Years
  • Back-Up Battery of Support Time (RTC): 1-Year Min. with Recorder UnPowered

Cable Length

  • Ethernet Communication: Max.

Channels

  • 18 - 6100A
  • 48 - 6180A
  • Virtual Channels: 36 to 128

Circuit Protection

  • Open Circuit Detection: ± 57 NA

Communication

  • 10/100 BaseT Ethernet (IEEE 802.3)
  • ASCII Protocol Printer Support (Typical Applications: Input of ASCII String Inputs from barcode Readers, Credit Card Readers etc)
  • BOOTP
  • DHCP
  • EIA-422
  • Ethernet TCP/IP
  • FTP
  • ICMP
  • Modbus RTU Master & Slave
  • SMTP
  • SNTP
  • Transmission Standard: EIA-232
  • Transmission Standard: EIA-485
  • USB Plug & Play

Current

  • Thermocouple of Bias Current: 0.05 NA
  • Transmitter PSU of, Max.

Display

  • 12.1” XGA (1,024 x 768 Pixels) - 6180A
  • 5.5” 1/4 VGA (320 x 240 Pixels) - 6100A
  • Colour TFT LCD with Cold Cathode Backlight, Fitted with Resistive, Analog, Touch-Panel

Electrical Connectors

  • CAT5 Cable
  • Termination: Edge Connector/Terminal Block
  • Termination: RJ45

Electrical Rating

  • AC Load Rating: 2 A at 250 V, 500 VA

Environmental Protection

  • 6100A Portable Case Option: IP21
  • Protection Bezel & Display: IP66
  • Sleeve: IP20

Frequency

  • Maximum

Humidity

  • Operation: 5 to 80 % Relative Humidity
  • Storage: 5 to 90 % Relative Humidity

Input

  • -150 mV to 20 V
  • 2/3-Wire RTD Contact Closure (Not Channels 1, 7, 13, 19, 25, 31, 37, 43) > 60 Miiliseconds
  • Channel to Channel: 2,500 Vac (Dielectric Strength)
  • Channel to Ground: 1,500 Vac (Dielectric Strength)
  • Event Input of Current Sink (Voltage I/P): 10 mA
  • Maximum
  • Over Voltage Protection: 50 V Peak (150 V with Attenuator)
  • Recognition Levels Active: -30 to 0.8 V
  • Recognition Levels Inactive: 2-30 V

Input Impedance

  • 20 V Range: 65.3 kiloohms
  • 38 mV, 150 mV, 1 V Ranges: > 10 megaohms

Insulation

  • Terminals to Ground, Event Input to Ground: 50 Vrms or Dc (Basic, Double Insulation)

Insulation Resistance

  • > 10 megaohms at 500 Vdc

Isolation

  • Channel to Channel, Channel to Common Electronics, Channel to Ground: 300 Vrms or Dc (Double Insulation)

Linearization

  • RTD Typical of, Max.
  • Thermocouple Typical of, Max.

Mounting

  • Panel Mount DIN 43700

Operating Temperature

  • 0° to 50° C (32° to 122° F)

Power

  • Maximum

Power Requirement

  • Poly-Carbonmonofluoride / Lithium Batteries

Power Supply

  • 24 V Isolated Transmitter Power Supply

Pulse Range

  • Minimum Pulse Width: 62.5 milliseconds

Resistance

  • Contact Resistance Event: Active if Resistance 200 kiloohms
  • Minimum Break Resistance: 10 megaohms

Resolution

  • Input: 1.4 to 720 µV
  • Input: 5 to 148 milliohms

RTD Type

  • Cu10
  • Cu53
  • JPt100
  • Ni100
  • Ni120
  • Pt100
  • Pt1000
  • Pt100A

Sample Rate

  • 125 milliseconds Parallel Sampling
  • Input/Relay Output Sample Rate: 8 Hz

Sensor, Probe Type

  • B Thermocouple
  • C Thermocouple
  • D Thermocouple
  • E Thermocouple
  • G2 Thermocouple
  • J Thermocouple
  • K Thermocouple
  • L Thermocouple
  • Ni/NiMo Thermocouple
  • NiMo/NiCo Thermocouple
  • N Thermocouple
  • PL2 Thermocouple
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple
  • U Thermocouple

Shock

  • BS EN 61010

Storage Temperature

  • -20° to 60° C (-4° to 140° F)

Supply Voltage

  • 100-230 Vac ± 15 %, 47 to 63 Hz
  • 110/120 Vac: 100 mA (Transmitter PSU)
  • 110-370 Vdc
  • 220/240 Vac: 63 mA (Transmitter PSU)

Temperature Effect

  • Worst Case Temperature Performance Input Per °C: 25 to 388 ppm

Temperature Range

  • RTD Typical: -220° to 850° C (-364° to 1,562° F)
  • Thermocouple Typical: -270° to 2,495° C (-454° to 4,523° F)

Vibration

  • 10 to 150 Hz: BS EN 60873, Section 9,18

Voltage

  • Output Voltage: 25 V Nominal
  • The Rate Impulse Voltage for Equipment on Nominal 230 V Mains is 2,500 V
