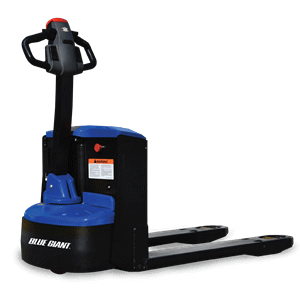

LPJ-44 Pallet Truck
Brand: Blue Giant Equipment CorporationOur 4,400 lb capacity fully electric pallet truck is the most capable and maneuverable product in its class.
Featuring a 48V BLDC permanent magnet motor and large easy exchange Li-ion battery, the LPJ-44 will move heavy loads around your facility or make deliveries all day long.
When coupled with an optional additional easy exchange Li-ion battery, you can achieve infinite duty cycles thanks to their rapid recharge rate and extended run time.
Features- 48 Volt 30AH rechargeable Lithium-ion battery
- Variable speed from 0 mph to 3.7 mph empty
- Variable speed from 0 mph to 3.3 mph loaded
- 3.5 hours of operation time; 2 hours to fully charge
- Low-mounted tiller arm offers excellent operator comfort
- Three-position hydraulic lever; lifting, neutral, and lowering
- Handle return spring keeps operator handle in vertical option upon release
- Wrap around hand guard, push button travel control, reversing switch, on/off switch, battery discharge indicator and horn as standard equipment
- Fork size: 27" x 45" (686 mm x 1,143 mm) standard
- Tapered forks and entry and exit rollers support smooth pallet handling
- DC pump and chrome plated cylinder provide for smooth and efficient lifting
- Water resistant connectors and shrouded wiring harness supply power reliably to components
- Electromechanical brake provides good stopping power when handle is upright or lowered beyond the operating range
Specifications
Capacity
- 4400 lb (1995 kg)
Battery
- Optional extra batteries can be purchased to extend run time or to serve as a reliable back-up.
- 48 V/30 AH rechargeable lithium ion battery Revolutionary Easy Exchange HD Battery delivers up to 3.5 hours of operation and can be fully charged within 2 hours.
Charger
- Built-in 110 Vac 13.5A plug-in internal charger
Weight
- 550 lb with battery
Forks
- Forks can achieve a max. elevation of over 8.5" and are built for heavy duty use and come standard with a robust fork entry roller for reliable pallet entry.
- 27" OAW x 46" OAL Designed for use with standard 48" pallets and other common skids and containers.
Performance
- 48-volt curtis travel control with permanent magnet drive motor
- Variable speed from 0 mph to 3.7 mph empty
- Variable speed from 0 mph to 3.3 mph loaded
Wheels
- Drive (1) 9.6" x 3.7" polyurethane
- Load (2) 3.25" x 4.5" polyurethane
Brakes
- Electromechanical brake provides good stopping power when handle is upright or lowered beyond the operating range.
Controls
- Travel, lift, and lower functions are located on the ergonomic control head. All operator controls are accessible without having to lift one’s hand from the handle grips. The control head is designed to allow for easy operation of with either hand and includes a belly button reversing switch, dual butterfly travel controls, horn, and battery discharge indicator and key switch. The low mounted tiller arm offers excellent operator comfort and minimum steering effort.
Hydraulics
- DC pump and chrome plated cylinder provide for smooth and efficient lifting.
Electrical
- Water resistant connectors and shrouded wiring harness supply power reliably to components. System includes an emergency power disconnect and covered on-board dock for the Easy Exchange HD Battery.
Serviceability
- Removable covers and modular design of components provides for easy maintenance with simple hand tools. Two piece drive wheel reduces complexity of tire changes.
