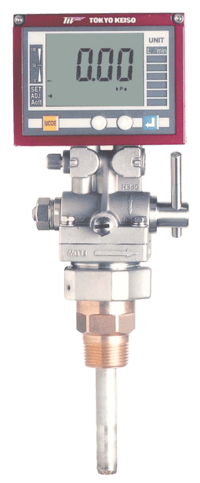

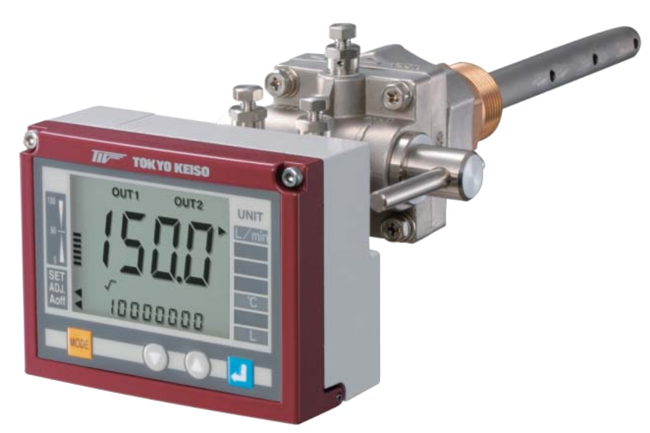

CDT1000 Series Multi Digital Flowmeter
Brand: Tokyo Keiso Co, Ltd
CDT1000 is a new series of flowmeter which combines a multi- digital indicator with a pitot tube. CDT1000 detects the differential pressure exerted by flow velocity in the pitot tube inserted in the pipe and outputs flow rate with digital indication. Applicable sizes range from 20 to 450 mm dia.
The principal applications are for hot and cooling water lines for air conditioning in apartment and office buildings and other facilities.
Features- Easy installation
- Low pressure drop
- Wide measuring range
- Applicable for both horizontal and vertical pipes
- Indicator parts are interchangeable
Specifications
Brand
BSP Connection
- 3/4” BSPT Male
Diaphragm Material
- 316L Stainless Steel
Enclosure, Body Material
- 316 Stainless Steel
- Indicator: Aluminum Alloy
Environmental Protection
- IP65
O-Ring Material
- Fluorine Rubber
