Fulflo M Series Single Cartridge Filter Vessels | ASME Code Design for High-Pressure Industrial & Chemical Filtration

Brand: Parker Hannifin

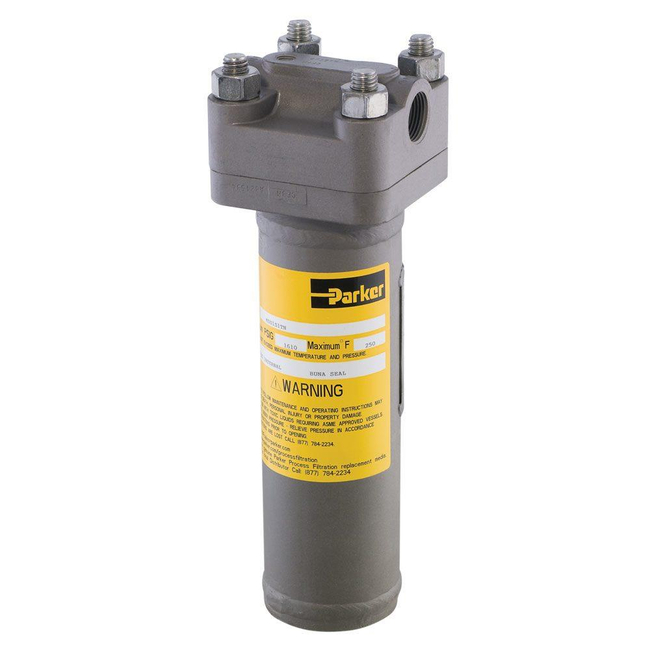

Parker’s “M” Series Single Cartridge Filter Vessels are designed for a broad range of high pressure industrial and chemical process applications.

All details of design, materials, construction and workmanship comply with the ASME code for pressure vessels.

The “M” series is available with and without the ASME stamp.
Features
  • ASME design to insure integrity, available with and without the ASME stamp
  • T-Style head and shell for ease of installation and servicing
  • Standard O-Ring closure seal is Buna N, with optional materials available for improved chemical compatibility and higher temperature rating
  • Flanged or threaded connections to suit installation requirements and preference
  • Optional 150, 300 or 600 lb. RFSO flange connections for installation flexibility
  • 1-inch connections for maximum flow capability of filter cartridges
  • Utilizes one 10-, 20- or 30-inch cartridge
  • Multiple bolt closure with bright zinc plated studs
  • Optional single-open-end (SOE 2- 222 TC Style) cartridge adapter for positive sealing of high efficiency filter cartridges
  • Wide range of cartridge media available for process clarity control and chemical compatibility
  • Rigid cartridge support post with threaded end seal for positive double open end (DOE) cartridge seating

Specifications

Filter Construction

  • Single Cartridge Filter Vessel

Flow Rate

  • 6 gpm, 12 gpm, 18 gpm

Function

  • Clarification

Markets

  • Industrial / Inks, Paints & Coatings

Maximum Operating Pressure (psi)

  • 1610 psi (111 bar), 245 psi (16.8 bar), 665 psi (45.8 bar), 1332 psi (91.8 bar), 225 psi (15.5 bar), 590 psi (40.6 bar), 1180 psi (81.3 bar)

Maximum Operating Temperature (°F)

  • 250° F

  • Chemicals
  • Process Water
  • Catalyst Recovery
  • Lubricants
  • Solvents
  • Coolants
  • Cutting Oils
  • Hydraulic Oils
  • Other High Pressure Liquids
  • Compressed Air and Gases
