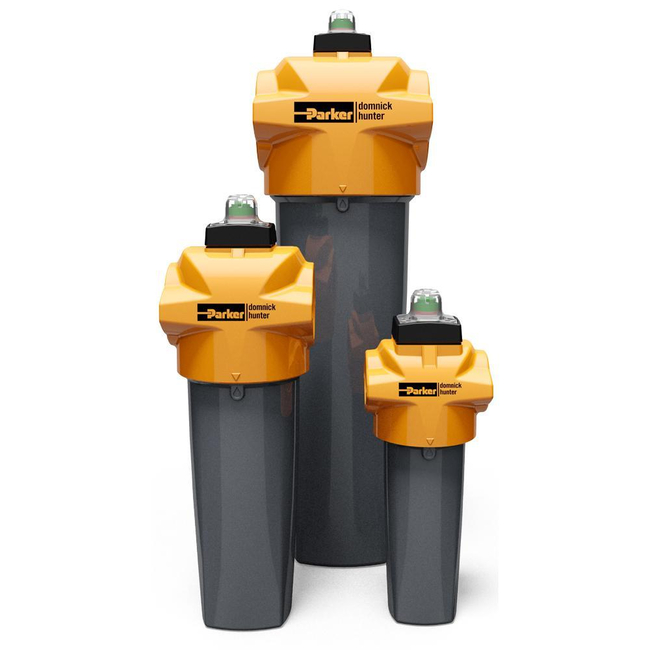

OIL-X Compressed Air Filter (For Pressures up to 16 and 20 bar g)

OIL-X Compressed Air Filter (For Pressures up to 16 & 20 barg)

Brand: Domnick Hunter - by Parker
Add Product to My Catalog

The Parker domnick hunter OIL-X range of die-cast compressed air filters has been designed from the outset to meet the air quality requirements of all editions of ISO8573-1, when validated in accordance with the stringent requirements of ISO12500-1.

An efficient and cost effective manufacturing process is a major factor in maintaining the profitability and growth of your business. All Parker domnick hunter products are designed to not only minimise the use of compressed air and electrical energy in their operation, but also to significantly reduce the operational costs of the compressor by minimising pressure losses.

OIL-X filters incorporate a number of unique and patented design features to minimise differential pressure and provide a filter and element combination where the differential pressure starts low and stays low to maximise energy savings and provide the lowest lifetime costs without compromising air quality.
Features
  • For the removal of bulk liquid, water and oil aerosols, atmospheric dirt and solid particles, rust, oil vapour, pipescale and micro-organisms
  • Coalescing filter performance tested to the stringent requirements of ISO12500-1, ISO8573-2 and ISO8573-4
  • Dry particulate filter performance tested in accordance with the requirements of ISO8573-4

View_Details

Specifications

Brand

Applications

  • Filtration of Compressed Air & Nitrogen Gas

Depth (inch)

  • 2.6 to 11.1

Depth (mm)

  • 66 to 282

Element Change Interval

  • 12 Months.

Height (inch)

  • 7.09 to 33.5

Height (mm)

  • 180 to 847

Maximum Flow Rate (cfm)

  • 21 to 1314 100 psig

Maximum Fluid Temperature (°C)

  • Float Drain (Coalescing Filters), Manual Drain (Dry Particulate Filters)

Maximum Operating Pressure (barg)

  • 16 & 20

Maximum Operating Pressure (psig)

  • 239 & 290

Maximum Operating Temperature (°C)

  • 80° C & 100° C

Maximum Operating Temperature (°F)

  • 176° F & 212° F

Minimum Operating Pressure (barg)

  • 1

Minimum Operating Pressure (psig)

  • 15

Minimum Operating Temperature (°C)

  • 2° C

Minimum Operating Temperature (°F)

  • 35° F

Replacement Element

  • Grades AO/AA

Residual Oil Content

  • 0.003 mg/m³ - 0.003 ppm(w) @ 21° C (70° F) to 0.5 mg/m³ - 0.5 ppm(w) @ 21° C (70° F)

Weight (kg)

  • 0.61 to 44.5

Weight (Lbs)

  • 1.34 to 98.1

Width (inch)

  • 2.99 to 16.54

Width (mm)

  • 76 to 420

Documentation

Data Sheets

Brochure

Document
